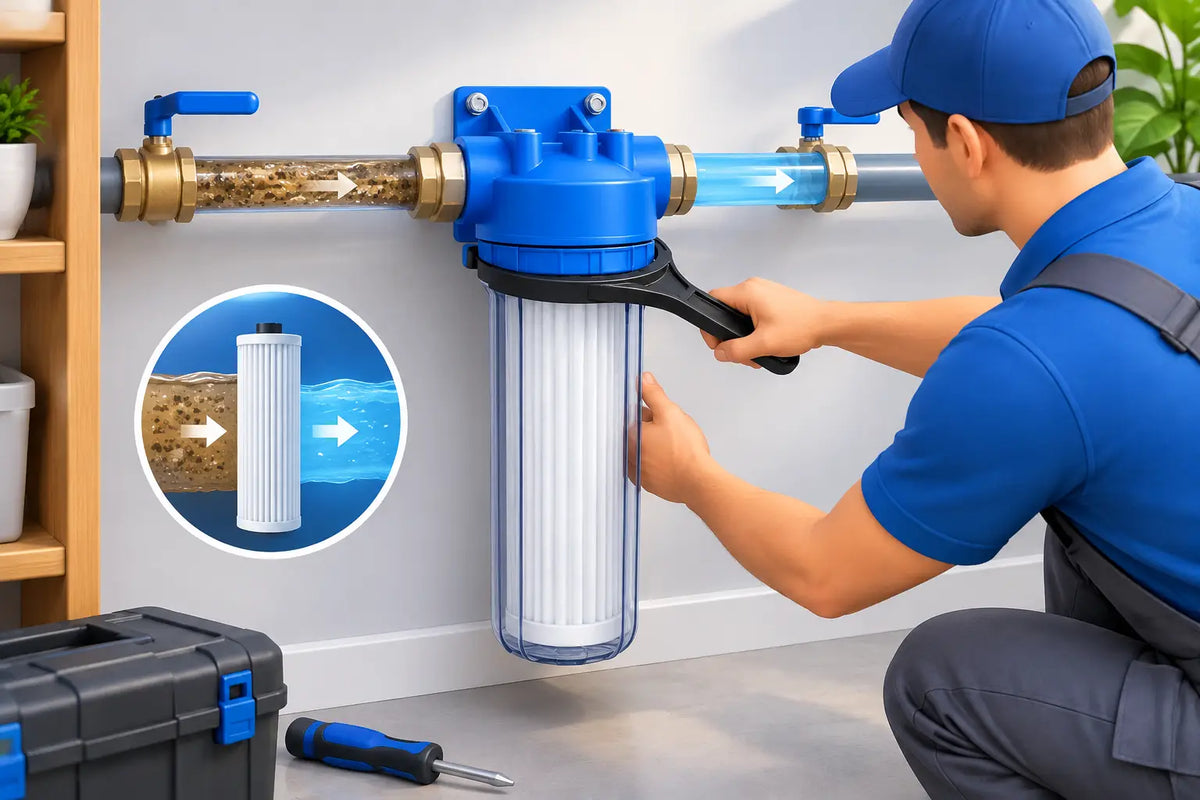

A sediment filter installation is usually the first line of defense for a water system, not an afterthought. Installed in the right location and sized for actual flow demand, it protects valves, fixtures, water heaters, UV equipment, reverse osmosis systems, irrigation components, and pumps from sand, silt, rust, scale, and other suspended solids. Installed poorly, it can become a pressure-drop problem that creates more service calls than it prevents.
For a residence, farm, commercial building, or process-water application, the goal is straightforward: remove particulate matter without restricting the water volume the system needs. That requires more than selecting a cartridge by micron rating. Filter housing size, plumbing layout, service access, pressure limits, and water source all affect the result.
Start With the Water Source and Flow Requirement
Before selecting hardware, identify what is actually in the water. Well water commonly carries sand, fine sediment, iron particles, or seasonal turbidity. Municipal water may contain pipe scale or rust released during service work. Surface water and irrigation supplies can have a heavier and more variable solids load.
A water test can help distinguish dissolved contaminants from visible particulate matter, but a simple inspection also provides useful direction. Let a clear container of raw water sit undisturbed. Material that settles to the bottom is a strong indication that sediment filtration should be installed upstream of sensitive equipment.
Next, determine peak flow rather than average daily use. A home with two bathrooms may need substantially less flow than a property with livestock waterers, multiple irrigation zones, or a commercial washdown line. Undersizing a housing is one of the most common causes of complaints. The filter may capture sediment effectively, but pressure falls sharply whenever multiple fixtures or valves open.
For modest residential point-of-entry applications, a standard-size housing may be sufficient where demand is limited. Higher-flow homes, farms, and commercial systems often benefit from larger-diameter housings, parallel filter banks, or purpose-built sediment separators. The correct choice depends on required gallons per minute, particle loading, allowable pressure drop, and the available pipe size.
Choose the Right Filter Type Before Installation
A cartridge filter is not the best answer for every sediment problem. Fine cartridges are effective for polishing water, but they load quickly when incoming water contains heavy sand or visible grit. In those conditions, place a spin-down separator, screen strainer, or hydrocyclone-style separator ahead of the cartridge housing when appropriate. This approach keeps large debris from consuming expensive cartridges too quickly.
Micron rating should match the material you need to remove and the equipment you are protecting. A 50-micron or 100-micron screen is often useful for larger grit and irrigation protection. A 20-micron cartridge can address visible sediment in many whole-house applications. A 5-micron cartridge offers finer filtration before UV sterilizers or other sensitive downstream treatment equipment, but it will generally require more frequent replacement.
Do not assume finer is always better. A very fine cartridge installed on water with high sediment loading can plug rapidly and restrict service flow. In many systems, staged filtration is more reliable: coarse separation first, followed by a finer cartridge only where needed.
Also verify the housing material, temperature rating, pressure rating, port size, and cartridge length. A housing with 3/4-inch ports may function on a small line but can become a bottleneck on a 1-inch or larger supply. Match the filter assembly to the plumbing system, not just the cartridge that is readily available.
Locate the Filter Where It Can Protect the System
For a whole-building supply, install the sediment filter after the pressure tank on a private well system and before downstream treatment equipment and branch lines. This arrangement protects the distribution system while avoiding unnecessary restriction between the well pump and pressure tank.
On municipal water, the usual placement is after the main shutoff valve and pressure-reducing valve, if one is installed, but before water heaters, treatment systems, and most interior plumbing branches. A filter should not be installed where freezing temperatures can crack the housing or where poor access makes cartridge service impractical.
Placement matters even more when other treatment equipment is involved. Sediment filtration normally comes before carbon filtration, UV disinfection, and reverse osmosis pretreatment. Particles can shield microorganisms from UV light, foul carbon media, and plug small orifices and membranes. Removing solids first helps each downstream component operate closer to its rated performance.
Leave enough clearance below the housing to remove the sump and replace cartridges. A technically correct installation that requires dismantling nearby piping for every cartridge change is not a maintainable installation. Plan for the filter wrench, a bucket, drainage, and safe working room.
Build a Serviceable Sediment Filter Installation
Shut off the water supply and relieve pressure before cutting pipe or opening an existing system. Confirm that electrical equipment near the work area is protected from water exposure. On well systems, isolate and depressurize the plumbing according to the pump and pressure-tank arrangement.
Use a rigid, level mounting surface when the filter head requires support. Large housings become heavy when filled with water, and unsupported piping can stress threaded ports, fittings, and valves. Follow the flow-direction arrow on the filter head. Reversing flow may reduce performance or complicate servicing.
A practical installation includes isolation valves on both sides of the housing. These valves allow cartridge changes without shutting down the entire building. A bypass line is also useful for commercial, agricultural, and critical-use systems where water service cannot be interrupted during maintenance. However, a bypass must be clearly labeled and normally kept closed. Unfiltered water passing through an open bypass can expose downstream equipment to sediment without anyone realizing it.
Install pressure gauges before and after the filter whenever pressure performance matters. The difference between those readings is the filter's pressure drop. A clean filter establishes the baseline; a rising differential tells the operator when the cartridge is loading. This is more accurate than replacing cartridges strictly by calendar date.
Use fittings compatible with the pipe material and application pressure. Avoid overtightening plastic filter heads or threaded fittings. Thread sealant should be used according to the fitting type, while excessive tape or compound can crack female ports or introduce debris into the line. For higher-flow assemblies, provide proper pipe supports so the filter head is not carrying the weight of the plumbing.
Flush, Check, and Commission the System
After assembly, close the downstream valve if needed and slowly restore water pressure. Opening the supply valve gradually helps prevent pressure shock and gives you time to inspect each connection. Check the housing O-ring carefully. A dry, clean, properly lubricated O-ring is essential for a reliable seal; damaged or flattened O-rings should be replaced rather than reused.
Flush the filter according to the cartridge manufacturer's instructions before placing it into normal service. Carbon and some specialty cartridges often require extended flushing, while sediment cartridges typically need enough flow to clear trapped air and loose manufacturing residue. Direct initial discharge to a suitable drain or exterior location when possible.
Once air is purged, open downstream valves and check static and flowing pressure. Run several fixtures, zones, or process valves to confirm that the filter supports the required demand. Record the upstream and downstream gauge readings after commissioning. That record gives maintenance staff a useful reference when diagnosing future flow loss.
Maintain for Pressure, Not Just Appearance
A discolored cartridge is not automatically a failed cartridge, and a cartridge that looks relatively clean may still be restricting flow internally. Replace or clean the filter when differential pressure reaches the limit set for the system, when service flow declines, or when water quality indicates breakthrough.
Maintenance frequency depends on the source. A stable municipal supply may need periodic cartridge replacement only a few times per year. A sandy well, seasonal surface-water source, or active irrigation system may need inspection weekly or monthly. Keep spare cartridges, O-rings, and a housing wrench on site when water service is critical.
If cartridges are plugging far faster than expected, do not simply buy finer or more frequent replacements. Reassess the installation. The source may need coarse pre-separation, the housing may be undersized, or a recent change in well performance, pipe condition, or water source may be increasing solids load.
Common Problems That Point to Installation Errors
Persistent low pressure immediately after installation usually indicates an undersized housing, overly fine cartridge, incorrect flow direction, partially closed valve, or restrictive fittings. A pressure loss that develops over time points more often to normal filter loading or unusually high sediment volume.
Leaks at the housing are commonly caused by a misplaced O-ring, debris on the sealing surface, a cracked sump, or overtightened connections. Never attempt to open a pressurized housing. Shut off the supply, relieve pressure, and inspect the components before resealing.
If a UV system alarms or a reverse osmosis unit loses production shortly after a filter installation, verify cartridge micron rating and change interval. Those systems may need finer prefiltration, but only after the upstream solids load has been handled without creating unacceptable pressure drop.
A properly planned filter is a working part of the water system, not a disposable accessory. Select it around flow, sediment load, and downstream equipment needs, then install it with valves, gauges, clearance, and replacement access. That extra planning keeps water moving and gives operators a clear path to maintain performance when conditions change.
