Water Testing Protocols for Military Operations: A 2026 Technical Guide

Relying on bottled water logistics in a contested theater is a tactical liability that compromises mission endurance and increases logistical strain. Maintaining water security in foreign theaters involves navigating high levels of uncertainty regarding raw water source contamination. It's difficult to balance the need for laboratory-grade accuracy with the practical limits of deployable equipment. Implementing standardized water testing protocols for military operations is the only way to bridge this gap between field expediency and technical compliance.

This guide provides the framework to master the technical standards and field-ready protocols required to ensure water safety and mission readiness in austere environments. We cover the latest 2026 WHO guidelines, NATO STANAG 2136 interoperability requirements, and the specific hardware needed to maintain TB MED 577 standards. You'll gain a clear understanding of essential testing parameters and the procurement of mobile treatment units, including containerized RO plants and UV sterilization systems, to support global operations.

The Strategic Importance of Water Quality in Military Logistics

Water security is mission security. In austere environments, water is a critical supply class that directly impacts the readiness of the force. Failure to provide safe water leads to high Disease and Non-Battle Injury (DNBI) rates, which can compromise an entire operation more effectively than kinetic engagement. Maintaining rigorous water testing protocols for military operations ensures that the water supply remains a tactical asset rather than a liability. When water sources are contaminated, the logistical strain of treating or transporting clean water increases exponentially, pulling resources away from the primary mission.

Field commanders must distinguish between potable and palatable water. Water is potable when it's safe for human consumption according to established health standards. It's palatable when it's pleasing to the senses, lacking offensive odors, colors, or tastes. Soldiers often refuse to drink safe but unpalatable water, leading to dehydration and decreased cognitive function. Environmental Science Officers (ESOs) manage these risks by supervising water surveillance and ensuring that treatment hardware performs to specification under field conditions.

Force Health Protection and Water-Borne Threats

Biological threats in raw water sources are a primary concern for force health protection. Pathogens like Cryptosporidium, Giardia, and Norovirus can spread rapidly through a unit if primary barriers fail. Cryptosporidium is particularly dangerous because it's resistant to standard chlorine disinfection, requiring advanced filtration or UV sterilization. Chemical threats also pose significant risks. Industrial runoff, heavy metals, and CBRN contaminants can turn a seemingly clean source into a toxic hazard. Even low-level exposure to these substances degrades physical performance and long-term health, making continuous monitoring essential for mission endurance.

Tactical Water vs. Municipal Water Standards

Military water standards aren't just a copy of municipal EPA guidelines. In many cases, tactical requirements are more stringent because the risk profile of an unknown foreign water source is much higher than a regulated domestic supply. Military systems must account for a wider range of contaminants and higher concentrations of pollutants. This necessitates the use of redundant barriers in mobile treatment units. While historical systems like ERDLator field water treatment units provided a baseline for purification, modern requirements demand the precision found in advanced industrial water treatment systems. These mobile plants use multi-stage filtration and reverse osmosis to ensure that water testing protocols for military operations meet the highest safety benchmarks, regardless of the raw water quality found at the point of origin.

Core Military Compliance Standards: TB MED 577 and NATO STANAGs

U.S. Army operations rely on TB MED 577 as the primary technical bulletin for sanitary control and surveillance. It dictates the water testing protocols for military operations required to protect personnel from environmental health hazards in the field. This document establishes specific Military Exposure Guidelines (MEGs) for chemicals and sets strict thresholds for microbiological presence. It serves as the definitive reference for Environmental Science Officers when certifying a water point for troop use.

Multinational operations require alignment through NATO STANAG 2136. This standardization agreement ensures that water supplied by one nation's purification unit is safe for use by all coalition forces. It defines minimum potability requirements and establishes a common language for water quality reporting across different military branches. Adhering to these standards prevents interoperability issues that could arise when different nations share a single water distribution network.

Consumption limits are divided into short-term and long-term categories. Short-term limits allow for higher concentrations of certain substances during emergency maneuvers lasting up to seven days. Long-term limits align more closely with permanent health standards for stays exceeding a week. Precise record-keeping at tactical water points is mandatory. These logs must include the source location, treatment method, and daily analytical results. They provide the necessary data for post-deployment health assessments and tracking potential exposure events.

Key Parameters for Field Analysis

Field teams monitor physicochemical indicators like pH, turbidity, and Total Dissolved Solids (TDS). High turbidity is a major concern because it can shield pathogens from disinfection, making it a critical metric for filtration efficiency. Disinfection residuals, specifically Free Available Chlorine (FAC), must be maintained throughout the distribution system to prevent secondary contamination. Standard FAC targets typically range from 2.0 mg/L to 5.0 mg/L depending on the specific threat environment. Microbiological surveillance focuses on Coliform testing as a reliable indicator for fecal contamination in remote sites.

CBRN Water Contamination Protocols

Detecting chemical, biological, radiological, and nuclear (CBRN) agents requires specialized equipment and training. The M272 Water Testing Kit is a standard tool for identifying nerve, blister, and blood agents in the field. Advanced sensors now provide real-time detection for a broader range of radiological threats. Chemical agent water testing standards determine the safety of a source after a suspected attack. Testing personnel must use proper Personal Protective Equipment (PPE) to prevent exposure while handling potentially hazardous samples. To maintain compliance with these rigorous standards, ensuring your team has access to reliable protective gear and testing hardware is essential.

Field Testing vs. Laboratory Analysis in Remote Operations

Operational speed often outweighs laboratory precision in forward environments. While centralized laboratories provide high-accuracy data, the logistical delay of sample transport often exceeds the tactical decision-making window. Efficient water testing protocols for military operations prioritize immediate, actionable results at the point of use. This approach ensures that commanders can identify contaminants before they impact force readiness. Modular systems now bridge this gap by housing sophisticated diagnostic tools within the treatment footprint.

Portable photometers and colorimeters form the core of the field testing arsenal. These devices quantify chemical concentrations like chlorine residuals and pH levels with high reliability. For biological threats, compact incubation units allow for the detection of coliforms and other pathogens within 24 hours. Modern containerized units often function as a "Forward Laboratory," providing a controlled environment for sensitive analysis. These plants integrate Electric Power Controls and digital sensors to facilitate real-time data transmission. This connectivity enables remote monitoring by technical experts, ensuring compliance with established Army drinking water guidance without requiring a full laboratory staff on-site.

Advantages of Field-Expedient Testing

Field testing allows for immediate technical adjustments. If raw water turbidity increases due to environmental changes, operators can modify Reverse Osmosis (RO) feed rates instantly to protect membrane integrity. It's the most effective way to manage a dynamic water supply.

• Detection of distribution line breaches occurs in minutes rather than days.
• Logistical reliance on external sample transport is significantly reduced.
• Disinfection efficacy is verified immediately after system maintenance or repair.

When to Escalate to Benchtop Analysis

Field-expedient methods can't detect every threat. Benchtop analysis in a certified laboratory is necessary for initial baseline source characterization before site establishment. This screening identifies heavy metals, pesticides, and complex organic compounds that portable kits might overlook. Escalation is also mandatory during investigations of unexplained illness outbreaks within a unit. Furthermore, benchtop analysis is the primary method for the performance validation of Commercial Reverse Osmosis Systems, ensuring the hardware meets its specific contaminant rejection ratings under field conditions.

Implementing a 4-Stage Water Quality Surveillance Protocol

Effective water testing protocols for military operations rely on a multi-tiered surveillance strategy. It's not enough to analyze the final product. Operators must monitor the transition from raw environmental water to a safe, potable supply at every critical control point. This 4-stage protocol ensures every barrier in the treatment chain functions to technical specification, reducing the risk of system failure in non-permissive environments. Precision at each stage prevents the distribution of contaminated water and protects expensive filtration hardware from premature degradation.

The protocol begins with Stage 1: Raw Water Source Characterization and Selection. This baseline assessment identifies the physical and chemical profile of the source before any equipment is deployed. Stage 2 involves Pre-treatment and Filtration Monitoring, where the focus shifts to physical sediment removal and chemical conditioning. Stage 3 is Post-Purification Validation, which confirms the efficacy of Reverse Osmosis and UV barriers. Finally, Stage 4 covers Distribution Point and Storage Tank Surveillance. This final check ensures that water remains safe as it moves through tactical piping and into holding bladders.

Source Evaluation and Pre-filtration

High-turbidity and brackish levels dictate the initial hardware configuration. Testing for these parameters prior to pump intake is mandatory to prevent membrane fouling. Selecting Goulds Water Technology Pumps requires matching the specific pump curve and flow capacity to the source's pressure requirements and total dynamic head. During this stage, operators also implement pre-emptive chemical dosing. Using specialized antiscalants for scale inhibition protects downstream components from mineral buildup, ensuring the system maintains its rated permeate flow over extended deployments.

Validating the Treatment Barrier

The Reverse Osmosis (RO) stage is the primary defense against dissolved contaminants and chemical threats. Operators must continuously monitor permeate quality using high-rejection FilmTec and Hydranautics membranes. A sudden drop in salt rejection or a rise in permeate conductivity indicates a potential membrane breach. Secondary disinfection provides a redundant safety layer. UV intensity monitoring for Viqua UV purification systems provides real-time assurance of pathogen inactivation. Redundant testing for microbial indicators confirms the necessary log-reduction of viruses and bacteria, meeting the rigorous standards required for force health protection.

To secure the hardware necessary to execute these rigorous stages, you can find a complete selection of industrial water treatment components designed for rapid deployment.

Procuring Deployable Hardware for Military Water Security

The selection of water treatment hardware is as critical as the analytical methods used to verify it. In expeditionary environments, fixed infrastructure is rarely a viable option due to the time and labor required for installation. Containerized reverse osmosis (RO) plants provide a modular alternative that supports rapid site establishment. These systems are Provo-engineered for durability in extreme climates, featuring reinforced frames and climate-controlled enclosures that protect sensitive electronics from high heat and dust. Integrating high-performance components ensures that water testing protocols for military operations remain consistent regardless of the geographic location.

Maintenance protocols for remote treatment units must be simplified to ensure reliability. Utilizing standardized hardware allows field technicians to perform repairs without specialized tools. Leveraging global logistics for replacement consumables is essential for long-term mission endurance. This includes maintaining a steady supply of membranes, sediment filters, and chemical reagents. Selecting hardware with a proven record of industrial performance reduces the frequency of component failure and stabilizes the water supply chain.

Containerized and Mobile Treatment Units

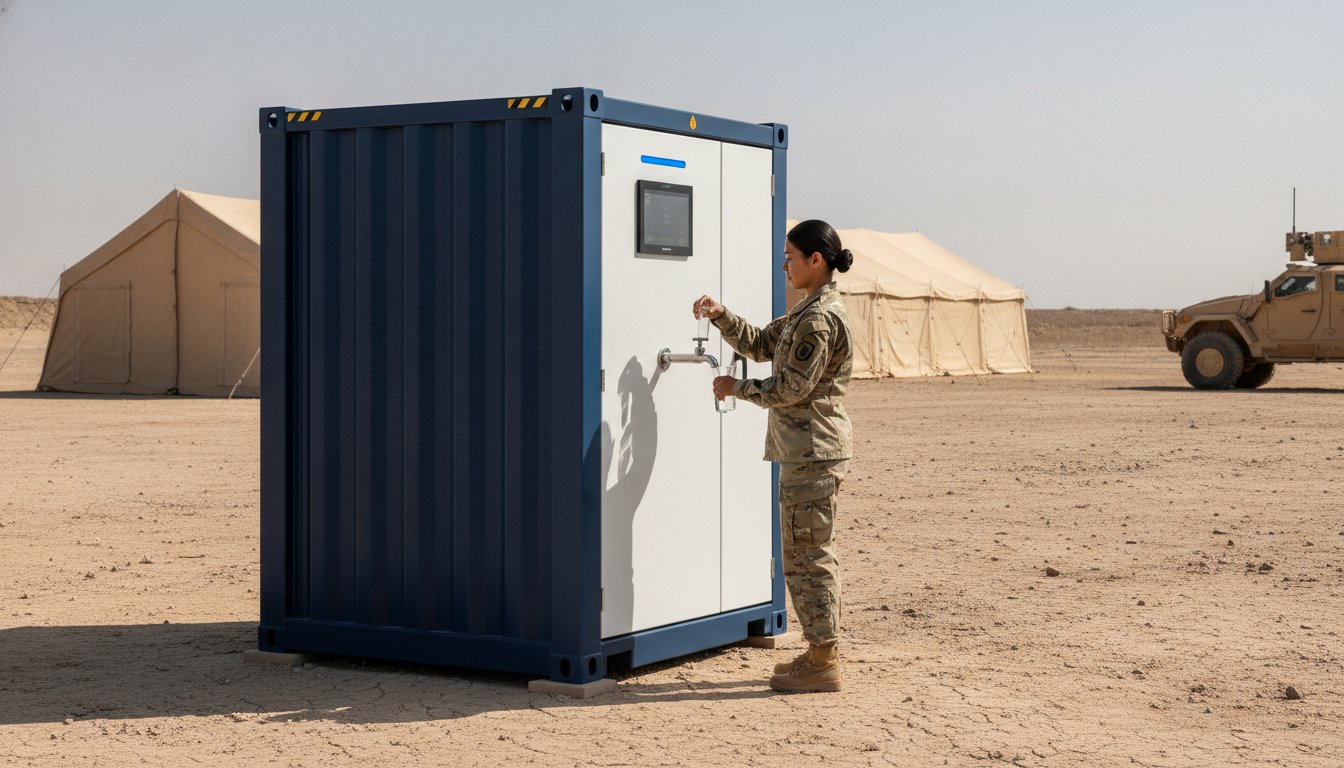

The role of Mobile Water Treatment Units is central to rapid deployment strategies. These units are designed for immediate transport via standard military logistical channels. Integrating Walchem controllers allows for automated protocol compliance, providing precise monitoring of pH and disinfection levels without constant manual intervention. Custom engineering is often required for specific theaters, such as high-salinity coastal regions or areas with known heavy metal contamination. These specialized systems utilize high-pressure pumps and advanced membrane configurations to meet potable standards in the most challenging raw water conditions.

Supply Chain Reliability for Consumables

Logistical efficiency is improved by standardizing on Harmsco and Pentair filter housings. This ensures field interchangeability across different treatment platforms, reducing the number of unique SKUs required in the inventory. Managing inventory for Water Treatment Chemicals involves calculating burn rates for antiscalants and disinfectants based on source water salinity and throughput. Reliable procurement of these consumables prevents system downtime and membrane fouling. Technical support and commissioning services for global military installations provide an additional layer of security, ensuring that hardware is optimized for local conditions upon arrival. This comprehensive approach to procurement secures the technical integrity of the entire water production chain.

Securing Mission Readiness Through Technical Excellence

Maintaining a reliable water supply in austere environments requires rigorous adherence to established standards like TB MED 577 and NATO STANAG 2136. Success in the field depends on the seamless integration of high-precision field analysis with robust, modular treatment hardware. Implementing structured water testing protocols for military operations ensures that every barrier, from raw source intake to final distribution, performs to technical specification. This proactive approach protects force health and significantly reduces the logistical burden of water transport.

Water Services, Inc. provides the expertise needed to support these critical missions. We offer specialized engineering for military-grade containerized systems and maintain extensive global deployment experience in Africa and the Middle East. As an authorized distributor for industrial leaders like Goulds, Viqua, and FilmTec, we ensure your equipment meets the highest standards of durability and performance. Design Your Deployable Water Solution with Water Services, Inc. to secure your mission's water supply. We look forward to supporting your next deployment with reliable technical solutions.

Frequently Asked Questions

What is the primary regulation for US military water testing?

TB MED 577, titled "Sanitary Control and Surveillance of Field Water Supplies," is the definitive regulation. It establishes the sanitary standards and surveillance requirements for all water used by US Army personnel in tactical environments. This document remains the core reference for Environmental Science Officers when certifying water points for troop use.

How often should water be tested during tactical operations?

Operational water points require daily testing as a minimum baseline. Surveillance teams must monitor free available chlorine residuals and turbidity levels hourly during peak production cycles to ensure system integrity. More comprehensive physicochemical analysis is typically scheduled weekly or immediately if the raw water source characteristics change.

What are the NATO standards for potable water in the field?

NATO STANAG 2136 establishes the minimum requirements for drinking water potability for NATO forces during land operations. It works in conjunction with AMedP-4.9 to ensure multinational interoperability. These standards define specific contaminant thresholds and standardized reporting formats that member nations must utilize during joint maneuvers.

Can field kits detect CBRN contaminants in water?

Specialized field kits like the M272 can detect specific chemical warfare agents, including nerve, blister, and blood agents. While these kits provide rapid results for known threats, detecting complex biological or radiological contaminants often requires advanced sensors or laboratory-grade benchtop analysis. Integrating these tools into broader water testing protocols for military operations is essential for comprehensive force protection.

What is the difference between short-term and long-term consumption limits?

Short-term limits apply to emergency consumption during maneuvers lasting up to seven days. These Military Exposure Guidelines allow for slightly higher concentrations of certain chemicals to ensure mission continuity. Long-term limits apply to stays exceeding one week and align with stricter permanent health standards to prevent chronic exposure issues.

How does turbidity affect the efficacy of UV sterilization in military systems?

High turbidity reduces UV sterilization efficacy by creating a shadowing effect that shields pathogens from radiation. Suspended solids prevent the UV light from reaching and inactivating bacteria or viruses. Effective pre-filtration is mandatory to ensure secondary barriers like Viqua UV systems operate at their rated log-reduction capacity.

What are the essential parameters for daily water quality monitoring?

Daily monitoring focuses on pH, turbidity, and free available chlorine (FAC) residuals. These three metrics provide the most immediate indication of treatment system performance and disinfection status. Consistent tracking of these parameters is a core requirement of modern water testing protocols for military operations to prevent Disease and Non-Battle Injuries.

How can containerized RO systems simplify military water testing protocols?

Containerized RO systems simplify surveillance by integrating automated digital sensors and Walchem controllers directly into the treatment footprint. These systems centralize the monitoring of permeate conductivity and flow rates, reducing the need for manual sampling. This automation provides a controlled environment for diagnostic tools and ensures consistent data collection for technical reporting.
