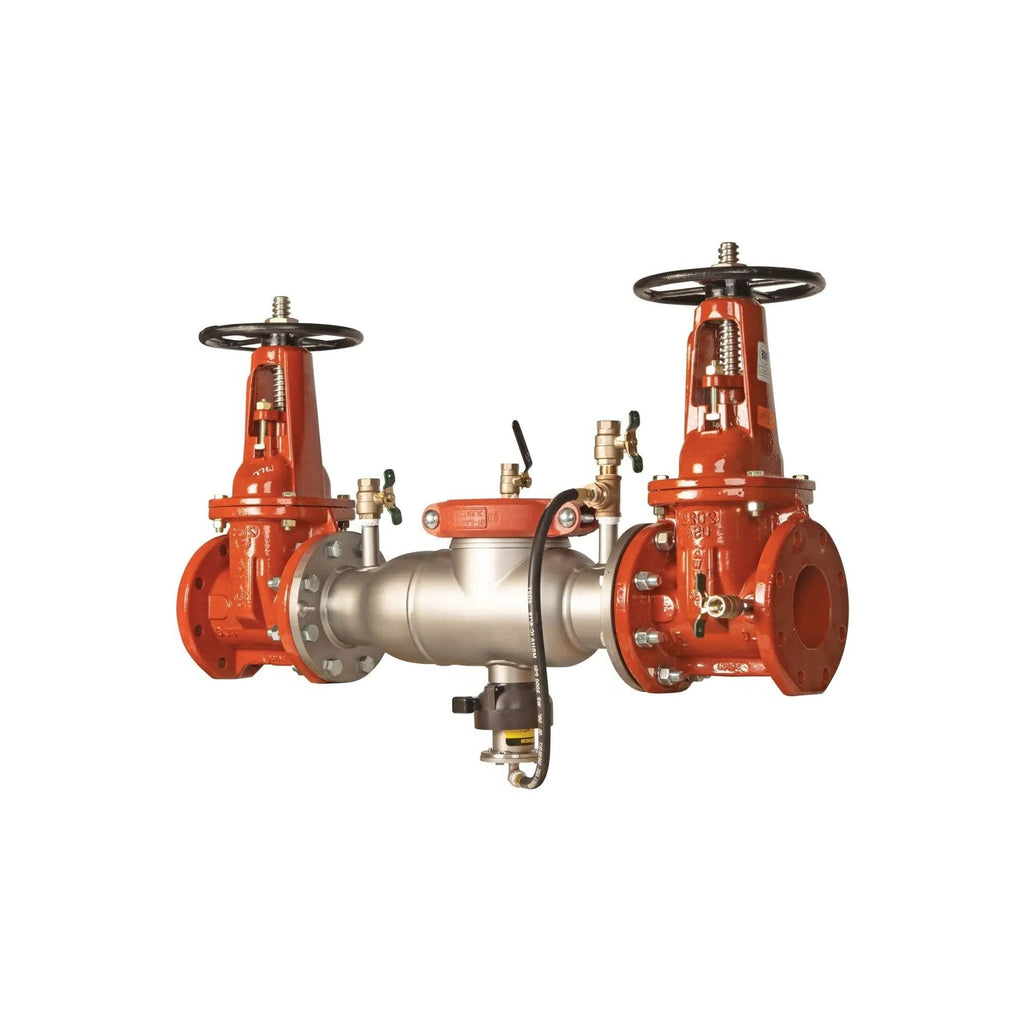

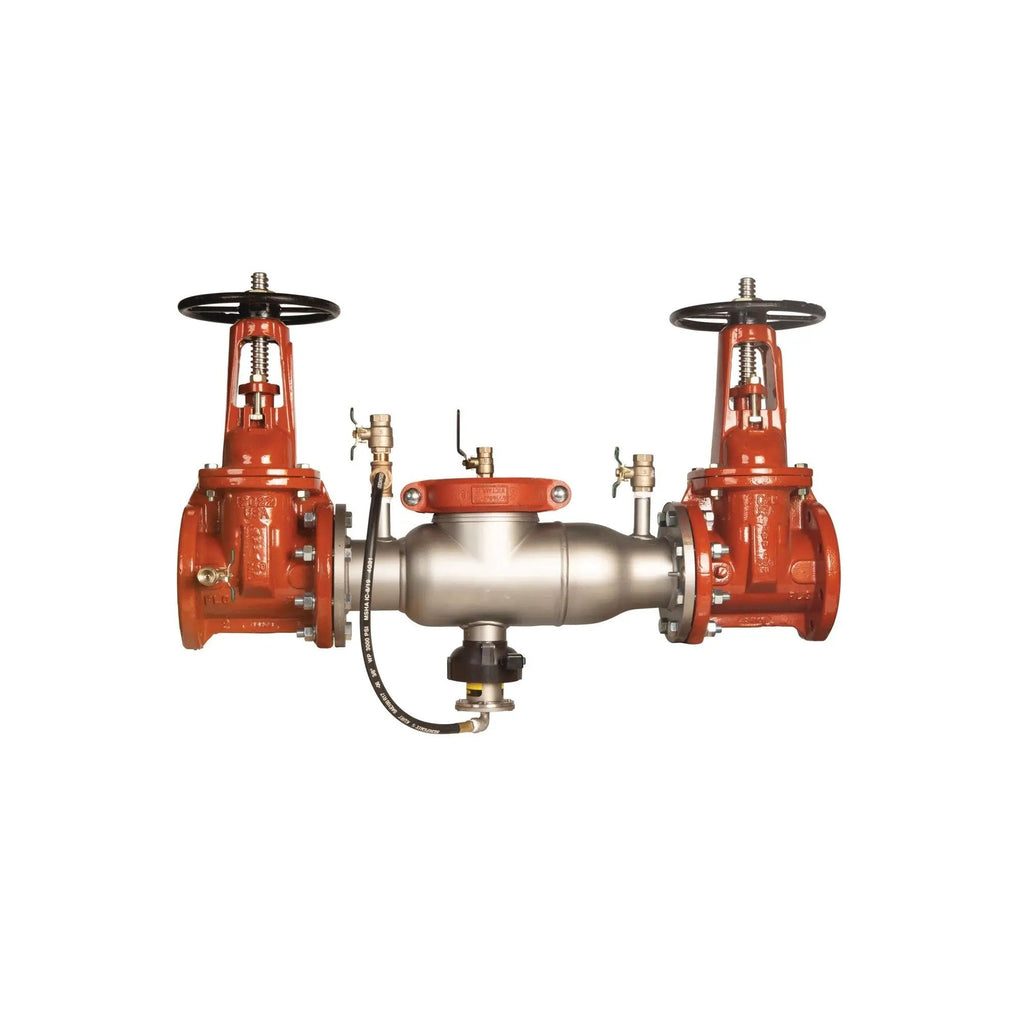

3" 4000SS OS&Y Backflow Preventor Valve Stainless Steel Stem
R 82,453.00
Sale price
R 82,453.00
Regular price
R 90,701.00
Shipping calculated at checkout
The 3" 4000SS OS&Y Backflow Preventor Valve protects commercial, industrial, and municipal water supplies from reverse flow contamination. Designed for integration into fire sprinkler systems and mainline water feeds, this assembly prevents cross-contamination while maintaining minimal pressure loss to support overall system hydraulic efficiency. The Outside Stem & Yoke (OS&Y) configuration satisfies visual inspection codes by providing an immediate, unobstructed indication of whether the valve is open or closed.
This backflow assembly fulfills life safety compliance requirements outlined in NFPA 13 for fire protection system installation, NFPA 24 for private service mains, and NFPA 25 for routine inspection and testing procedures. It meets stringent industry benchmarks, carrying UL Listing to UL 312 and FM Approval.
Key Features & Construction
- Stainless Steel Assembly Body: The reduced-pressure backflow assembly has a stainless-steel body.
- Stainless Steel Trim: Internal stems, nuts, and fasteners utilize 300-series stainless steel to resist corrosive water conditions.
- Dual Check Modules: Engineered check assemblies prevent contamination hazards while minimizing pressure drop across the valve.
- OS&Y Position Indication: Raised stem design allows field personnel to verify valve status visually without guesswork during testing procedures.
- Flexible Integration: Sized at 3 inches to interface seamlessly with standard flanged or grooved piping layouts.
Technical Specifications & Compliance Table
| Specification | Details |
|---|---|
| Manufacturer / Brand | Ames Backflows |
| Model / Series Number / SIN | 4000SS OS&Y |
| Connection / Thread Size & Type | 3" (Compatible with standard flanged or grooved connections) |
| Pressure Rating (WWP / Max Working Pressure) | N/A |
| K-Factor | N/A |
| Temperature Rating / Response Type | N/A |
| Material / Body Construction | Stainless Steel (Assembly Body); 300-Series Stainless Steel (Stems, Nuts, Fasteners) |
| Agency Listings & Approvals | UL Listed to UL 312, FM Approved |
| Applicable NFPA Standards | NFPA 13, NFPA 24, NFPA 25 |
Verify all local Authority Having Jurisdiction (AHJ) mandates and pipe sizing requirements prior to beginning installation. Consult the manufacturer's engineering guidelines for proper torque specifications and clearance details.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
