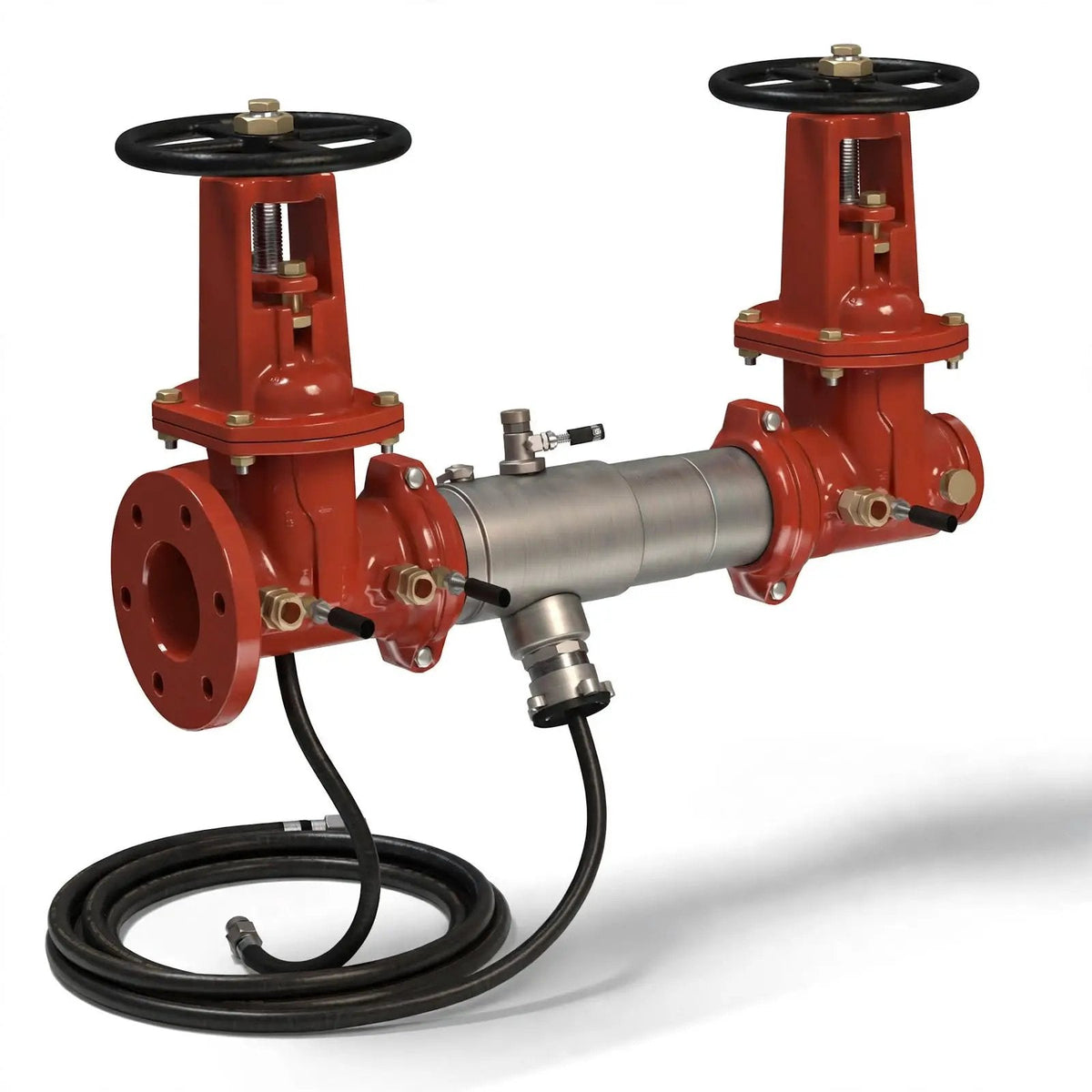

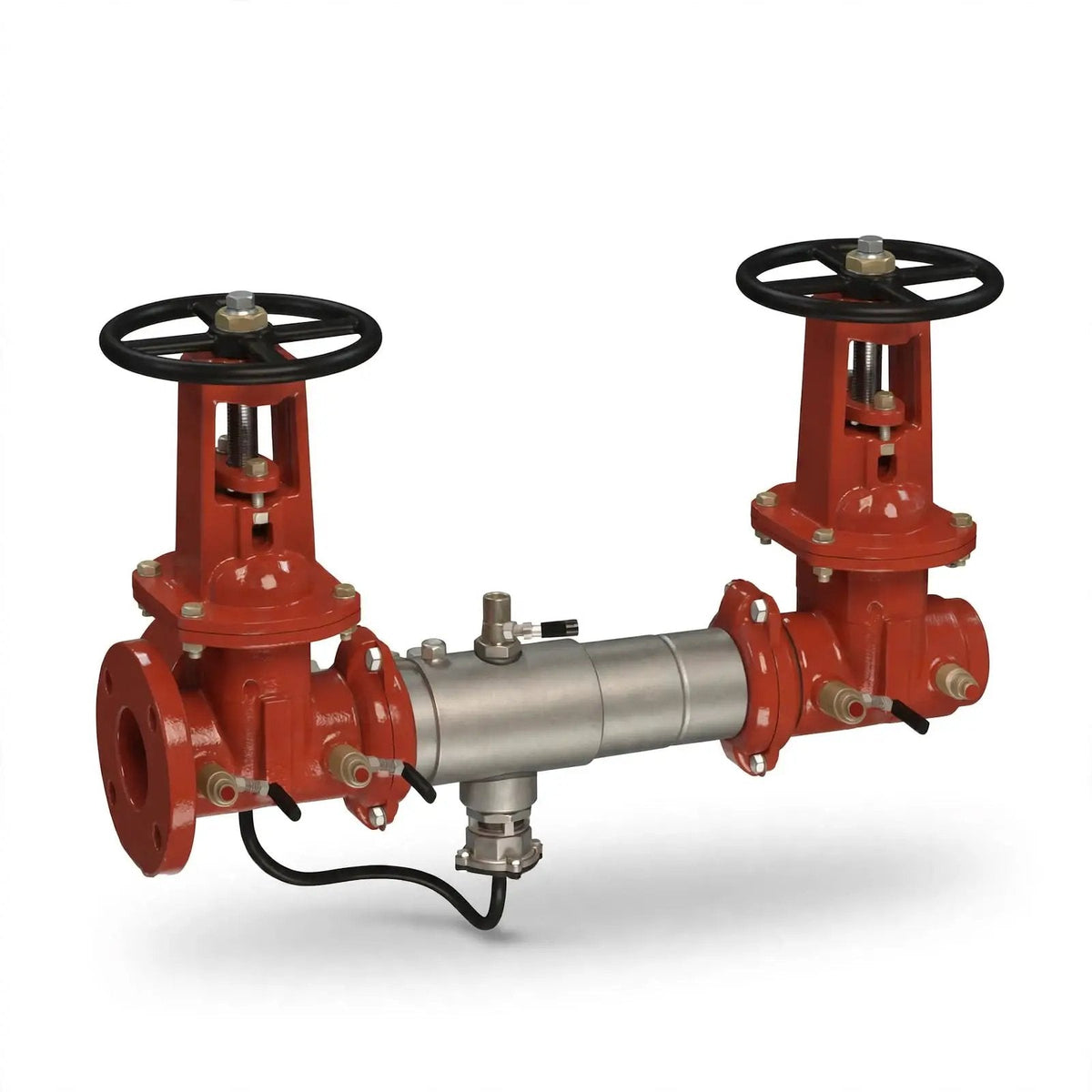

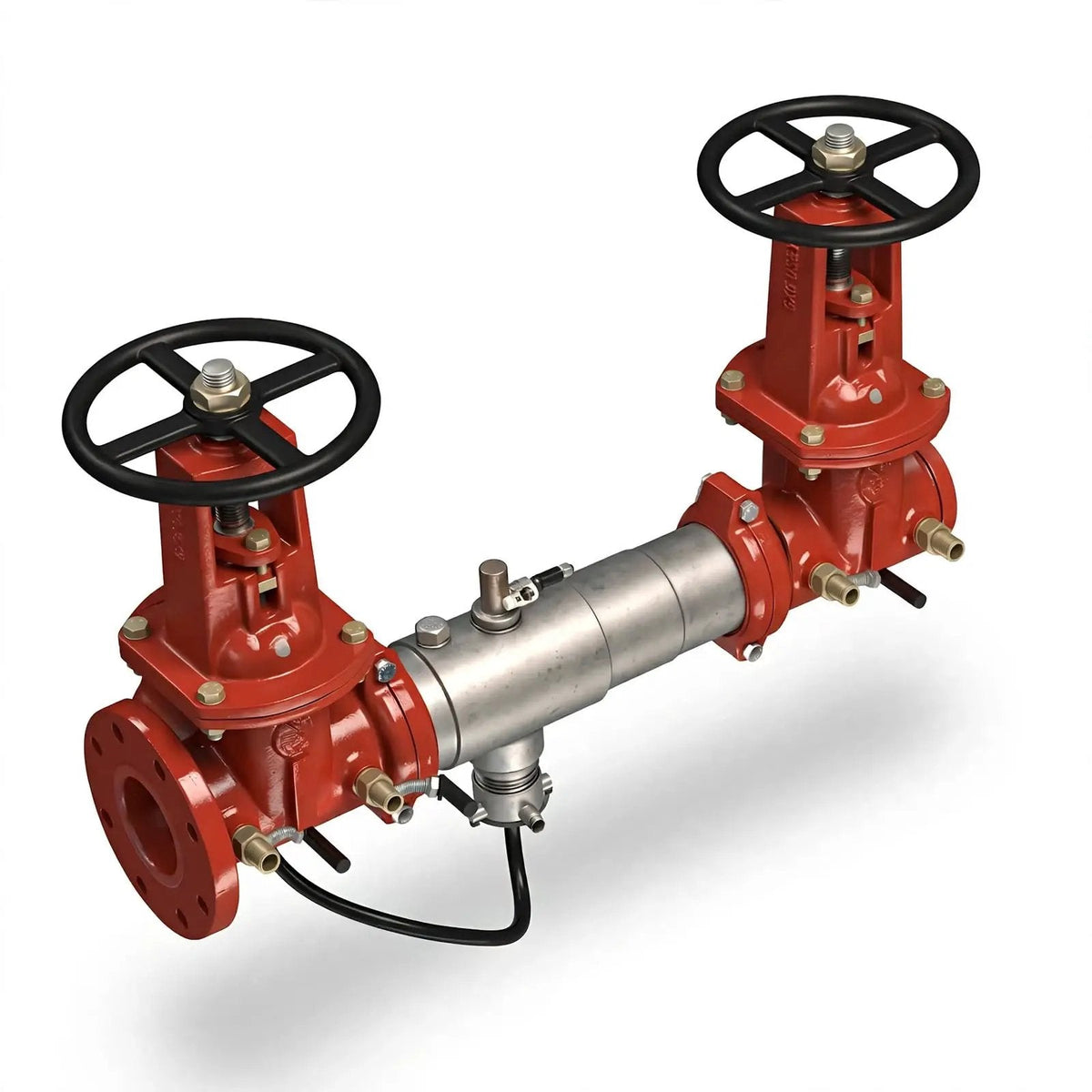

6" RP Assembly With FxG OSY Valve For Industrial Use
R 127,713.00
Sale price
R 127,713.00
Regular price
R 160,156.00
Shipping calculated at checkout
Protect industrial fire protection systems and isolate fire service water safely with the 6" RP Assembly with FxG OS&Y Valve. This heavy-duty backflow prevention component from Ames Backflows keeps potable water supplies uncontaminated during high-flow suppression events.
This assembly installs directly into fire protection systems to provide reliable backflow prevention and isolate service water during high-flow suppression events. It satisfies strict code compliance and testing requirements outlined in NFPA 13 and NFPA 25 standards, ensuring your facility maintains required safety measures and passes routine inspections.
- Ductile Iron Body: Built to ASTM A536 standards and coated in fusion-bonded epoxy to resist corrosion and wear in harsh environments.
- Stainless Steel Internals: Utilizes 300-series stainless steel for critical components like springs and fasteners to withstand moisture and temperature shifts.
- Check Valve Design: Incorporates Noryl™ or equivalent glass-filled thermoplastic check modules with reversible, replaceable EPDM elastomer seats.
- OS&Y Gate Valve: Provides clear visual confirmation of the valve position to streamline system monitoring and reduce maintenance complexity.
- Operational Range: Rated to handle pressures up to 175 PSI (12.1 bar) and temperatures ranging from 33°F to 140°F (0.5°C to 60°C).
- Inspection Ready: Pre-drilled test cocks let you facilitate regular inspections quickly to maintain your facility code requirements.
- Flexible Connections: Includes flanged ends per ANSI B16.1 and grooved ends per AWWA C606 to simplify installation across mechanical rooms and underground piping.
| Technical Specification | Details |
|---|---|
| Manufacturer / Brand | Ames Backflows |
| Model / Series Number / SIN | C400OSYFG-0600 |
| Connection / Thread Size & Type | 6" Flanged (ANSI B16.1) x Grooved (AWWA C606) |
| Pressure Rating | 175 PSI (12.1 bar) Max Working Pressure |
| K-Factor | N/A |
| Temperature Rating / Response Type | 33°F to 140°F (0.5°C to 60°C) |
| Material / Body Construction | ASTM A536 Ductile Iron with Fusion-Bonded Epoxy Coating |
| Agency Listings & Approvals | UL 1477 Listed, FM Approved, ASSE 1012 |
| Applicable NFPA Standards | NFPA 13, NFPA 25 |
Always verify local Authority Having Jurisdiction (AHJ) requirements and consult manufacturer technical data sheets prior to beginning installation.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
