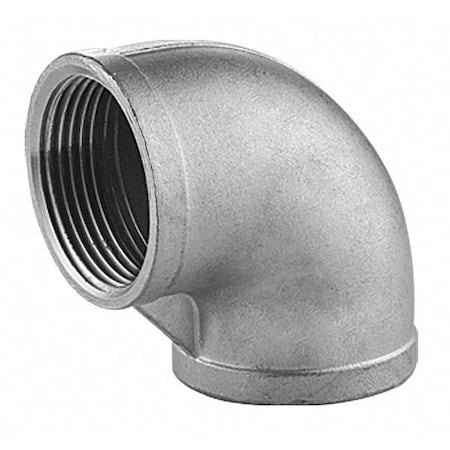

StainlessSteel,90Elbow,3"NPTx3"NPT

The ZORO SELECT - 609E111N030 is a 3-inch stainless steel 90 Degree Elbow pipe fitting designed to connect two pipes at a right angle, enabling a 90° change in flow direction. Constructed from 316 stainless steel, this fitting is compatible with listed fluids within the material compatibility and pressure/temperature specifications of the product (316 stainless steel; Class 150 rating; 300 psi max operating pressure; 150 psi max steam pressure). It features threaded female connections on both ends with National Pipe Taper (NPT) threads sized at 8 threads per inch. The fitting is rated to Class 150 pressure standards, supporting a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi, and complies with ANSI B1.20.1 thread standards. Key Features:

• - Material: 316 Stainless Steel
• - Connection Type: Female NPT threaded ends on both sides
• - Nominal Pipe Size: 3 inches on Side A and Side B
• - Thread Size: 8 TPI (threads per inch) on both connection ends
• - Pressure Rating: Class 150 with maximum operating pressure of 300 psi
• - Maximum Steam Pressure: 150 psi
• - Applications limited to fluids within the material compatibility and pressure/temperature specifications (316 stainless steel; Class 150; 300 psi max operating pressure; 150 psi max steam pressure)
• - Color: Silver finish
• - Includes no pre-applied thread sealant or seal
• - Meets ANSI Standards B1.20.1 for threading

• Ship Pack Height: 16
• Ship Pack Length: 20.8
• Ship Pack Width: 20.8
