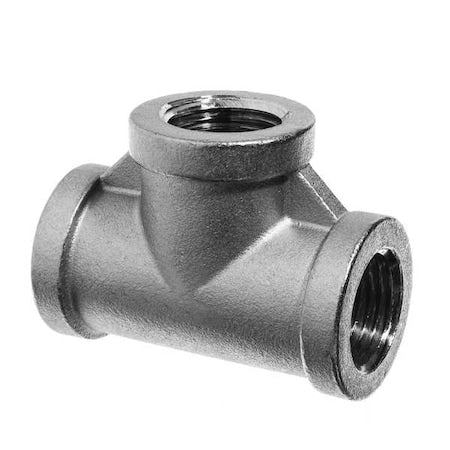

304 Stainless Steel Tee Fitting, 1/4 in Female BSPT Threads, Class 150

The ZORO SELECT ZUSA-PF-8219 is a stainless steel pipe fitting designed to provide corrosion-resistant connections in low- to medium-pressure systems. Rated for ASME/ANSI Class 150 standards, it is suitable for conveying applications involving water, steam, chemicals, food, and HVAC systems. Constructed from stainless steel alloy 304, it features female threaded connections with a nominal pipe size of 1/4 inch on each side, both threaded with a 19 TPI thread specification. Its rated for maximum operating pressure of 150 psi and steam pressure of 150 psi, making it appropriate for various piping configurations requiring durable, sanitary, and reliable joints.

Key Features:

• - Application: rated for use with specified fluids and system types within its material and pressure limits.
• - Class: rated for ASME/ANSI Class 150 pressure–temperature ratings.
• - Color: Unproblematic; factual description of appearance.
• - Fitting Side A: Female threaded connection, 1/4 in nominal pipe size, BSPT thread type, 19 TPI thread size.
• - Fitting Side B: Female threaded connection, 1/4 in size, BSPT thread type, 19 TPI.
• - Fitting Side C: Female connection, 1/4 in size, BSPT thread type, 19 TPI.
• - Includes Pre-Applied Thread Sealant: No.
• - Includes Seal: No.
• - Material Grade: 304 Stainless Steel.
• - Max. Steam Pressure: 150 psi.
• - Maximum Operating Pressure: 150 psi.
• - Standards: ISO 7-1.
• - Low Lead Compliance Level: Compliant.

• Ship Pack Height: 0.8
• Ship Pack Length: 1.5
• Ship Pack Width: 1.2
