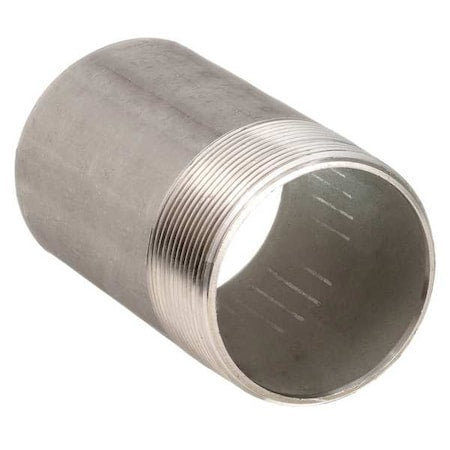

PipeNipple,SS,3/4",NPT,11/2"

The ZORO SELECT T6WNE2 is a stainless steel nipple designed for connecting two female-threaded fittings or pipes. It features male threads on one or both ends and is rated for use with piping systems handling air, natural gas, non-potable water, propane, or steam within the maximum rated pressure of 1563 psi at 650°F. It is made from 316 stainless steel and rated for maximum pressure 1563 psi at 650°F.

Key Features:

• - Material: 316 stainless steel
• - Shape: Nipple, a short length of pipe with male threaded ends
• - Inside Diameter: 53/64 in
• - Outside Diameter: 1 3/64 in
• - Length: 1 1/2 in
• - Connection Type: Threaded on one end, MNPT (Male National Pipe Thread)
• - Thread Configuration: Threaded on one end
• - Standards: ASME B1.20.1; ASTM A312; ASTM A733
• - Max. Pressure: 1563 psi at 650°F
• - Overall Pipe Length: 1.5 in
• - Wall Thickness: 0.109 in
• - Basic Pipe Fitting Material: Metal
• - Fittings Sub-Category: Nipples
• - Inside Diameter: 53/64 in
• - Nominal Pipe Size: 3/4 in
• - Pipe Connection Type: Threaded on One End

• Ship Pack Height: 0.75
• Ship Pack Length: 1.5
• Ship Pack Width: 3.5
