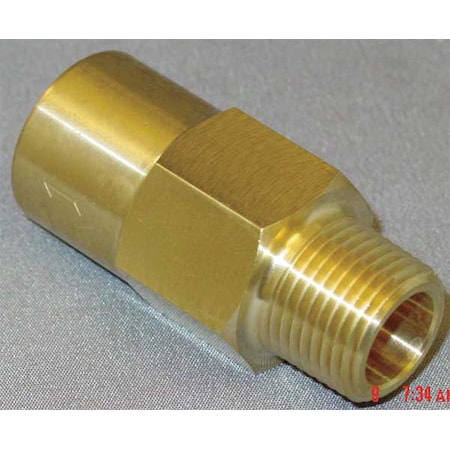

3/8" MNPT x FNPT Brass Piston Spring Check Valve
R 295.00
Sale price
R 295.00
Regular price
Shipping calculated at checkout
ZORO SELECT Series 610 check valve is an inline brass piston spring check valve for general-purpose air and compatible fluid applications. It is intended to permit one-way flow and restrict reverse flow using a spring-loaded piston. This 3/8 in. valve features MNPT x FNPT threaded connections, a 1 psi cracking pressure, a full-flow design, and is configured for horizontal or vertical installation.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism
- Body and internal materials: Brass body, brass check mechanism, and brass seat
- Connections: 3/8 in. MNPT x FNPT with NPT threaded ends; side 1 male and side 2 female
- Pressure rating: 500 psi maximum operating pressure and 500 psi maximum water pressure
- Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature
- Seal and spring: Viton/FKM seal with stainless steel spring
- Flow characteristics: Cv 1.4 and 1 psi cracking pressure
- Installation: Horizontal or vertical
- Dimensions: 1 11/16 in. length, 7/8 in. overall height and width, 7/8 in. hex size, and 3 9/16 in. cap to inlet center
- Ship Pack Height: 1.1
- Ship Pack Length: 5.5
- Ship Pack Width: 4.5
