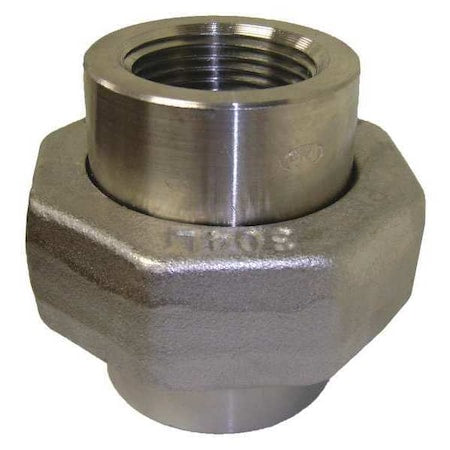

1 in NPT 316 Stainless Steel Union, Class 3000, Female-Female, 2-1/2 in Overall Length

The ZORO SELECT - 2000301718 is a stainless steel pipe union designed to connect and disconnect two 1-inch pipe ends without rotating the pipes. Constructed from 316 stainless steel, it features a sealing capability rated to maintain up to 3,000 psi at 100°F for piping systems handling natural gas, non-potable water, and oil. The union features female NPT threaded connections on both ends. It is rated for a maximum operating pressure of 3,000 psi at 100°F. Temperature range: -20°F to 100°F. This union complies with MSS SP83 and SA182 standards and carries a Class 3000 pressure rating.

Key Features:

• - Pipe Size: 1 inch nominal diameter on both ends
• - Connection Type: Female NPT threaded ends (Side A and Side B)
• - Material: 316 stainless steel alloy for corrosion resistance
• - Maximum Operating Pressure: 3,000 psi @ 100°F
• - Temperature Range: -20°F to 100°F
• - Overall Length: 2 1/2 inches
• - Hex Size: 2 1/2 inches for wrench application
• - Pressure Class: Class 3000
• - Compatible with piping systems handling natural gas, non-potable water, and oil
• - Includes no pre-applied thread sealant or seals
• - Standards: MSS SP83, SA182

• Ship Pack Height: 2.5
• Ship Pack Length: 2.7
• Ship Pack Width: 2.7
