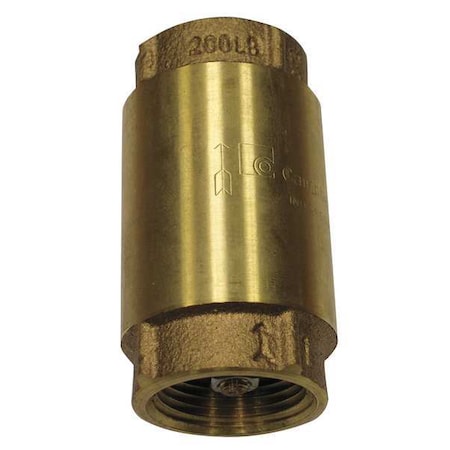

3/4" FNPT Low Lead Brass Spring Check Valve
R 312.00
Sale price
R 312.00
Regular price
Shipping calculated at checkout
The CAMPBELL CV-3TLF is a 3/4 in. spring check valve with an inline body and 3/4 in. FNPT x FNPT female threaded connections. It uses a spring-loaded poppet check mechanism for one-direction flow applications. For media: water. The valve features a lead-free red brass body, 0.5 psi cracking pressure, and a flow rating of 13 gpm.
Key Features:
- 3/4 in. nominal valve size with 3/4 in. FNPT x FNPT connections
- Inline spring check valve design with poppet check mechanism
- Lead-free red brass body with 304 stainless steel check mechanism and spring
- Buna-N/NBR seal and bronze seat material
- For media: water
- Cracking pressure: 0.5 psi
- Flow rate: 13 gpm
- Maximum operating pressure: 200 psi WOG
- Operating temperature range: 35 to 158 degrees F
- Mounting orientation: horizontal or vertical
- Certification: NSF 61
- Standard: ASTM B62
- Overall dimensions: 3 in. L x 1-1/2 in. H x 1-1/2 in. W
- Ship Pack Height: 3.1
- Ship Pack Length: 7.2
- Ship Pack Width: 6.6
