A float switch may be a small part of a pumping system, but selecting the wrong one can cause short cycling, dry running, overflow, or a pump that never starts. Knowing how to select float switch equipment begins with the actual job the switch must perform: start a pump, stop a pump, trigger an alarm, or provide backup control when the primary switch fails.
For sump, sewage, effluent, lift-station, irrigation, and process-water applications, the switch must match the pump control method, electrical load, tank geometry, liquid conditions, and required operating range. Start with the system, not the switch catalog.
Define What the Float Switch Must Control
A float switch can perform several different duties, and the duty determines the switch style and wiring arrangement. A pump-down application starts the pump as the liquid rises and stops it after the liquid level falls. This is common for sump pits, sewage basins, and wastewater lift stations.
A pump-up application does the opposite. It activates equipment when a tank level drops or rises, depending on the control sequence. These applications may include water-storage tanks, chemical feed tanks, irrigation reservoirs, or refill systems.
Some floats are not intended to carry pump power at all. They send a low-voltage signal to a control panel, relay, programmable controller, or alarm circuit. This is often the right choice for larger pumps, three-phase equipment, duplex systems, and installations where operators need alarm indication or alternating pump control.
Before selecting a switch, identify whether it will be used as a direct pump switch, a control-duty signal switch, or a high-water alarm. One float can sometimes handle more than one task, but separate floats are generally more reliable when a system needs both operating control and emergency alarm protection.
Match the Switch to the Pump Electrical Load
The most common selection mistake is assuming a float switch can safely power any pump with a compatible plug. Check the float switch electrical rating against the pump motor requirements, including voltage, full-load amps, horsepower rating, and phase.
A piggyback float switch is designed for plug-in pump control. The pump plugs into the float switch plug, and the float switch plugs into the power source. This arrangement is practical for many 120-volt sump, utility, and small sewage pumps. It also makes replacement straightforward when the existing pump and switch use standard grounded plugs.
Direct-control floats are limited by contact ratings. A motor has a higher starting current than its normal running current, so a switch that appears adequate based only on running amps may still be undersized. Verify that the switch is rated for motor loads at the required voltage.
For 208-, 230-, 460-, or other three-phase pumps, use the float switch as a control input to a properly sized motor starter or pump control panel. The float should energize the coil or control circuit, while the contactor handles the motor load. This approach is standard for commercial, industrial, agricultural, and municipal pumping systems because it protects the float contacts and supports overload protection, alarms, alternation, and manual control.

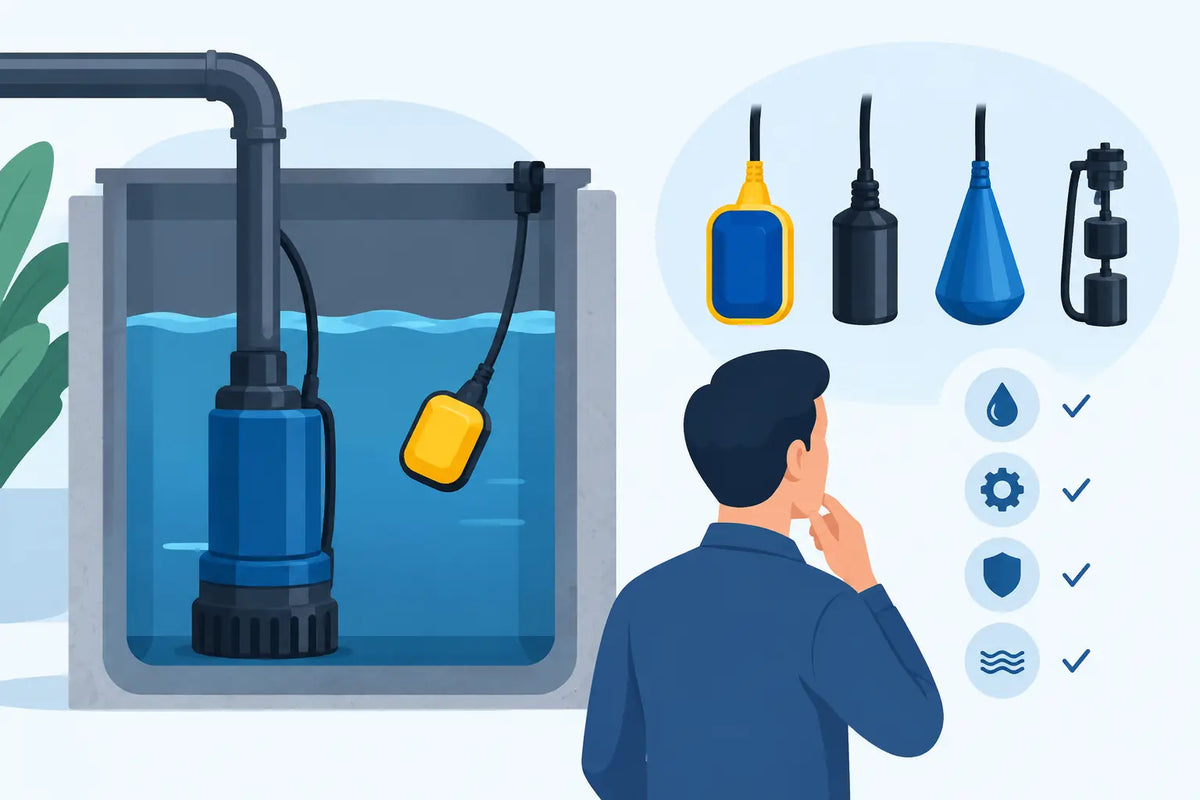

Choose the Right Float Style
The physical design of the float matters as much as its electrical rating. A tethered float switch hangs from a cable and changes state as the float rises and falls through an arc. It is a common choice for sump basins, sewage pits, effluent tanks, and general wastewater duty.
Tethered floats need enough free space to move. Their operating range depends on tether length and mounting position. A longer tether creates a wider pumping differential, meaning the pump runs longer between starts. That can reduce short cycling, but it also requires more available tank volume.
Wide-angle tethered floats provide a larger movement range and are often used where a wider on/off differential is needed. They work well in deeper basins with sufficient clearance. In a shallow pit or narrow chamber, however, a wide-angle float may strike the wall, discharge pipe, pump, or other floats before it completes its travel.
Vertical float switches move up and down a stem rather than swinging on a tether. They are useful where space is limited or where a narrow level differential is required. They are commonly used in cleaner water, condensate, small tanks, and control-panel applications. In wastewater with solids, grease, rags, or heavy turbulence, a tethered mechanical float or a purpose-built level sensor may be the better fit.
Set the Required Pumping Differential
The pumping differential is the distance between the pump start level and pump stop level. It affects pump cycling, usable storage volume, and the risk of running the basin too low.
A differential that is too short can make the pump start and stop frequently. Excessive cycling increases motor heat, contact wear, and pump wear. A differential that is too wide may allow an unacceptable liquid level, reduce available emergency storage, or leave a pump submerged in conditions that do not meet the manufacturer’s requirements.
For a sump or sewage basin, establish the desired stop level first. The pump should shut off before it loses required submergence, begins to vortex, or pulls air into the intake. Then set the start level high enough to provide useful run time without approaching the high-water alarm level.
Tank shape matters. A 24-inch-diameter basin gains liquid volume much more slowly per inch of level than a large rectangular pit. In a narrow basin, even a modest float movement may not provide enough run time for a high-capacity pump. Match pump capacity, basin volume, and float travel rather than selecting a switch based only on cable length.
Consider the Liquid and Installation Environment
Clean water, gray water, sewage, process liquids, and chemical solutions place different demands on a float switch. Review the float body and cable materials for compatibility with the liquid. PVC, polypropylene, nitrile, and other materials each have different limits for oils, fuels, solvents, acids, and elevated temperatures.
Wastewater applications also require attention to fouling. In a sewage basin, place floats where they can move freely without catching on pump rails, discharge piping, guide systems, cords, or debris. A float tree, mounting bracket, or weighted cable clamp can keep multiple switches organized and maintain consistent levels.
Cable length must reach the junction box or control panel without unsupported splices in the wet well. Select a cable rated for submersible use and allow enough length for proper routing and service. Do not knot, sharply bend, or tightly zip-tie a tethered float cable in a way that restricts its movement.
If the location contains flammable vapors, combustible dust, or classified hazardous conditions, do not install a standard float switch without confirming the required electrical classification and control design. Use equipment approved for that environment and follow applicable electrical codes.
Plan for Alarms and Backup Operation
A single float switch is adequate for many residential sump installations, but higher-consequence systems need redundancy. A sewage lift station, commercial building sump, agricultural wastewater tank, or critical process basin may require separate floats for pump start, pump stop, lag-pump start, and high-water alarm.
A high-water alarm float should be installed above the normal pump-on level and independent of the primary operating float whenever possible. If the pump fails, the operating float sticks, or the discharge line is blocked, the alarm can still provide warning before an overflow occurs.
Duplex pump systems usually use a control panel that alternates lead and lag pumps. In that arrangement, level switches communicate with the panel, which decides when to run one pump, both pumps, or activate an alarm. Do not attempt to duplicate duplex control by wiring multiple large pumps through ordinary piggyback floats.
How to Select Float Switch Mounting and Orientation
The switch can be correctly rated and still fail to operate if it is mounted poorly. Confirm the basin diameter, usable depth, pump location, discharge pipe position, and all obstructions before finalizing the installation.
For tethered switches, the tether point must provide enough swing radius for the float to travel from its low position to its high position. A float that rubs against a wall may hang in one position. A float mounted too close to the pump intake can cause the pump to run dry or cycle excessively.
For vertical switches, keep the stem upright and protect it from side loading. Sediment, scale, and solids can interfere with movement, so select a location that can be inspected and cleaned. In accessible tanks, installation should allow the float to be serviced without removing the entire pump assembly.
Test the System Before Leaving It in Service
After installation, manually raise and lower each float while observing the pump or control panel response. Verify pump start, pump stop, alarm activation, and lag-pump operation where applicable. Confirm that the pump does not exceed its intended run time and that the switch resets consistently.
Then test under actual water conditions. Turbulence, discharge flow, cords, and basin geometry can change how a float behaves compared with a dry test. Record the operating levels and label control-panel floats when more than one switch is installed.
The best float switch is not simply the one that fits the basin. It is the one matched to the pump load, control circuit, liquid, operating range, and consequences of failure. When those details are specified first, the switch becomes a dependable part of the system instead of the point that takes it out of service.
