A lift station is often installed where gravity drainage stops working: a basement bathroom below the sewer line, a remote building on a large property, a commercial addition, or a municipal collection point. This wastewater lift station guide focuses on the equipment decisions that determine whether that system runs reliably or becomes a recurring service call.

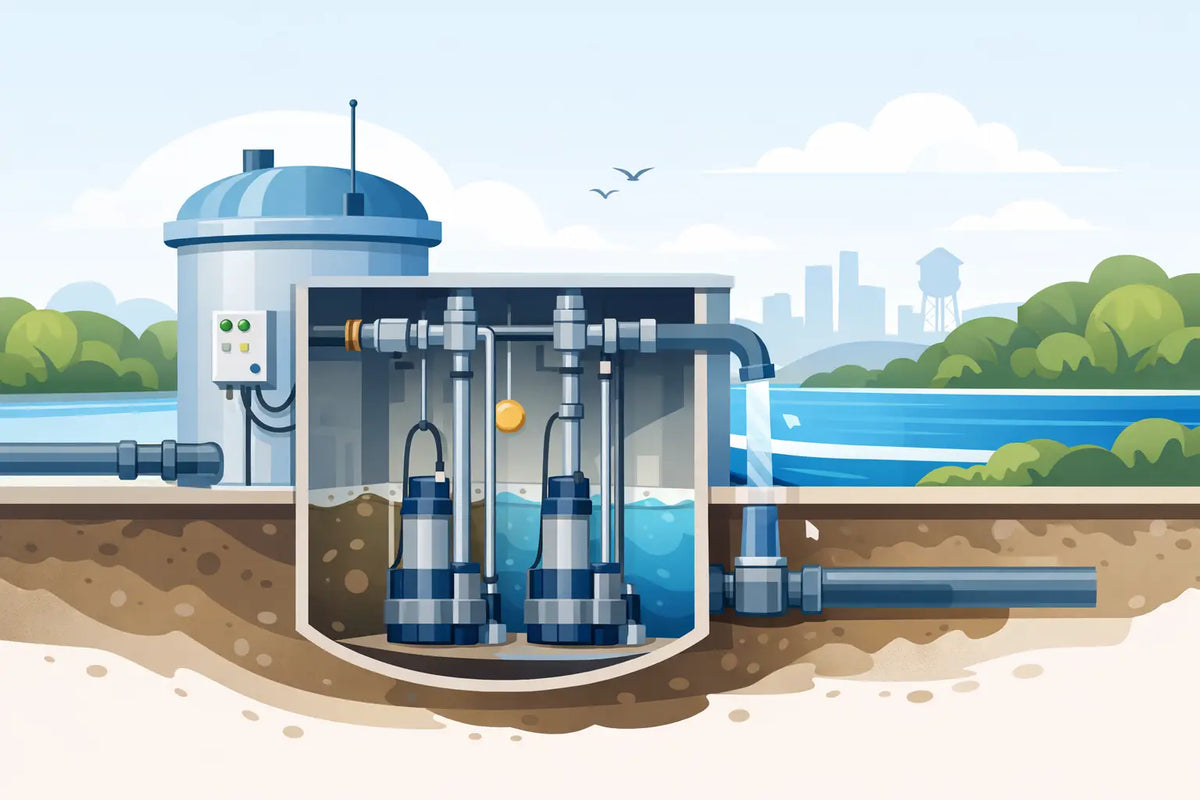

A complete lift station is more than a pump in a pit. The basin, pump type, piping, check valve, controls, alarm, electrical supply, and maintenance access must work as one system. Selecting any one component without accounting for the others can lead to short cycling, clogged impellers, high energy use, overflow risk, or premature pump failure.
What a Wastewater Lift Station Does
A wastewater lift station collects sewage or graywater in a sealed basin and pumps it to a higher elevation where gravity flow can resume. As incoming wastewater raises the basin level, a float switch or level sensor starts the pump. The pump moves wastewater through a discharge line, typically past a check valve and shutoff valve, into the building sewer, force main, septic system, or municipal connection.
Simple residential systems may use one automatic sewage pump. Commercial, institutional, agricultural, and municipal applications often use duplex stations with two pumps. One pump serves as the lead unit while the second provides backup, alternates run time, or starts during high-flow conditions.
The correct arrangement depends on the consequence of a failure. A single-family home may accept a single pump with a high-water alarm and an available replacement plan. A restaurant, multi-unit property, public facility, or process operation generally needs redundancy because a wastewater backup can halt operations and create a sanitation issue.
Wastewater Lift Station Guide: Start With the System Load
Pump selection begins with what enters the basin. Identify whether the station handles clear water, graywater, domestic sewage, wastewater containing solids, or difficult waste streams with wipes, stringy material, and debris. A pump that works well for laundry discharge or graywater may not be suitable for toilet waste.
Estimate the expected flow rate from fixtures, occupancy, equipment discharge cycles, and peak use periods. For commercial and industrial facilities, review actual water use where possible rather than relying only on fixture counts. Batch discharges from washers, food-service equipment, process equipment, or irrigation-related facilities can create short-duration peak flows that affect basin capacity and pump sizing.
The pump must also overcome total dynamic head, commonly called TDH. This includes vertical lift, friction loss in the discharge pipe, losses through fittings and valves, and any required pressure at the discharge point. Static lift alone is not enough. A pump may have sufficient flow at low head but fall well short once it is connected to a long force main with multiple elbows and valves.
Use the pump performance curve to confirm that the operating point falls within the recommended range. Look at gallons per minute or gallons per hour at the calculated head, not only the maximum flow or maximum head listed in a catalog. Oversizing is not automatically safer. An oversized pump can cause excessive velocity, water hammer, rapid cycling, and unnecessary electrical demand.
Choose the Right Pump Type
Wastewater pumps are selected by solids-handling ability, required head, available power, duty cycle, and service conditions. The common choices are sewage pumps, grinder pumps, and solids-handling pumps for heavier applications.
A standard sewage ejector pump is generally appropriate for domestic wastewater where the system is designed for normal toilet paper and household waste. These pumps use an impeller designed to pass solids up to a specified diameter. Confirm the solids-passage rating, discharge size, horsepower, voltage, and performance at the required head.
A grinder pump uses cutting elements to reduce solids before pumping through a smaller-diameter pressure line. Grinder pumps are useful where a small force main is necessary, where long discharge runs increase friction loss, or where the application has a higher clogging risk. They are not a substitute for proper user practices. Wipes, rags, feminine products, and other non-flushable materials can still cause problems and increase maintenance demands.
For commercial, industrial, or municipal duty, consider pumps with heavier construction, higher horsepower, three-phase power options, appropriate thermal protection, and controls designed for alternating or lead-lag operation. Three-phase grinder and sewage pumps can be a practical choice for facilities requiring higher flow, greater head capability, or continuous-duty performance. Specify the pump using its actual performance data, including flow at head, not its motor rating alone.
Basin Size and Construction Matter
The basin must provide adequate storage between pump start and stop levels. If the usable volume is too small, the pump will start and stop repeatedly. Short cycling adds wear to motors, switches, relays, and pump components. If the basin is too large, wastewater can remain in place longer than necessary, increasing odor and gas concerns while making cleaning more difficult.
Basin diameter and depth should allow room for the pump, float operation, inlet piping, discharge piping, and service access. The pump must sit securely, and floats need clear travel without tangling on cords, piping, or each other. For duplex systems, allow enough space for both pumps and for personnel to remove equipment without disturbing the entire installation.
Use a sealed basin and cover designed for wastewater service. The cover should limit odor release and prevent accidental entry or contamination. Material selection depends on the installation and chemical exposure. Many residential and light commercial stations use corrosion-resistant polyethylene or fiberglass basins, while larger engineered stations may require more specialized materials and structural details.
Build the Discharge Assembly for Serviceability
The discharge line should include a check valve to prevent wastewater from falling back into the basin after the pump stops. Without it, the system may experience extra cycling, reduced effective capacity, and increased pump run time. Install the check valve in the correct flow direction and select a style suitable for solids-bearing wastewater.
A full-port shutoff valve on the discharge side allows the pump or check valve to be serviced without draining the full discharge line. In many installations, a union, quick-disconnect, or guide-rail arrangement further simplifies pump removal. These details are easy to overlook during installation, but they can save significant labor when service is required.
Pipe diameter is a balancing act. Smaller pipe increases velocity and can help keep solids moving, but it also adds friction loss. Larger pipe reduces friction but may allow solids to settle if velocity is too low. Match pipe size to the pump curve, flow rate, solids characteristics, and line length. Avoid unnecessary elbows and sharp changes in direction.
Controls, Alarms, and Power Requirements
Controls determine when pumps start, stop, alternate, and alarm. A basic single-pump station may use a piggyback float switch. More demanding applications may use separate control floats or level sensors connected to a control panel.
For duplex stations, a proper panel can alternate the lead pump after each cycle, start both pumps during high inflow, and indicate which pump has failed or run excessively. This balances operating hours and provides valuable troubleshooting information. Consider a panel with hand-off-auto controls, pump run indicators, high-water alarm inputs, and an alarm test function.
A high-water alarm is a practical safeguard for nearly every wastewater lift station. It should alert occupants or maintenance personnel before the basin reaches overflow level. Audible alarms work well where staff are nearby. Remote notification is worth considering for vacation properties, unattended commercial sites, agricultural buildings, and critical facilities.
Verify voltage, phase, breaker size, wire gauge, disconnect requirements, and grounding before ordering the pump and controls. A 120-volt pump may be convenient for smaller applications, while 230-volt or three-phase equipment can be better suited to larger loads and longer runs. Electrical work must follow applicable local code and should be completed by qualified personnel.
Maintenance That Prevents Emergencies
Lift stations need scheduled inspection even when they appear to be operating normally. Check pump run time, alarm function, float movement, basin condition, valve operation, and signs of leakage or corrosion. Keep records of service dates, pump amperage, alarm events, and replacement parts. A change in normal run time or current draw often provides an early warning of a developing problem.
At service intervals, remove accumulated grease, sediment, and debris from the basin as needed. Inspect the check valve for blockage or wear. Confirm that venting is unobstructed and that the basin cover remains sealed. Before entering, opening, or servicing any wastewater basin, follow confined-space, electrical lockout, gas exposure, and personal protective equipment procedures. Wastewater environments can contain hazardous gases and biological contaminants.
Keep critical replacement items available for installations where downtime is costly. Depending on the station, that may include a float switch, check valve, control relay, seal kit, spare pump, alarm component, and the fittings needed to make a repair without delay.
A dependable lift station is specified from the system backward: start with the wastewater, flow, head, power, and failure risk, then select the pump, basin, controls, valves, and service hardware to match. When each component is sized for the actual operating conditions, the station is easier to maintain and far less likely to fail when the property needs it most.
