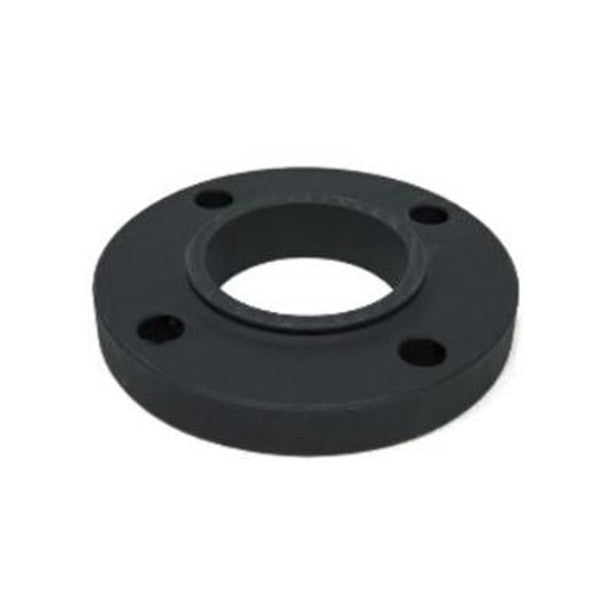

1 1/4" CLASS 150 SLIP-ON FLANGES
Flange Type |
Slip-On |
Nominal Pipe Size |
1 1/4 |
Outside Diameter (O) |
4.63 in |
Thickness (T) |
0.63 in |
Raised Face Diameter (R) |
2.50 in |
Length Thru Hub (Y) |
0.81 in |
Hub Diameter (X) |
2.31 in |
Bore (B) |
1.70 in |
Approximate Weight |
3 lb |
Bolt Circle (C) |
3.50 in |
Number of Holes |
4 |
Diameter of Holes |
0.63 in |
