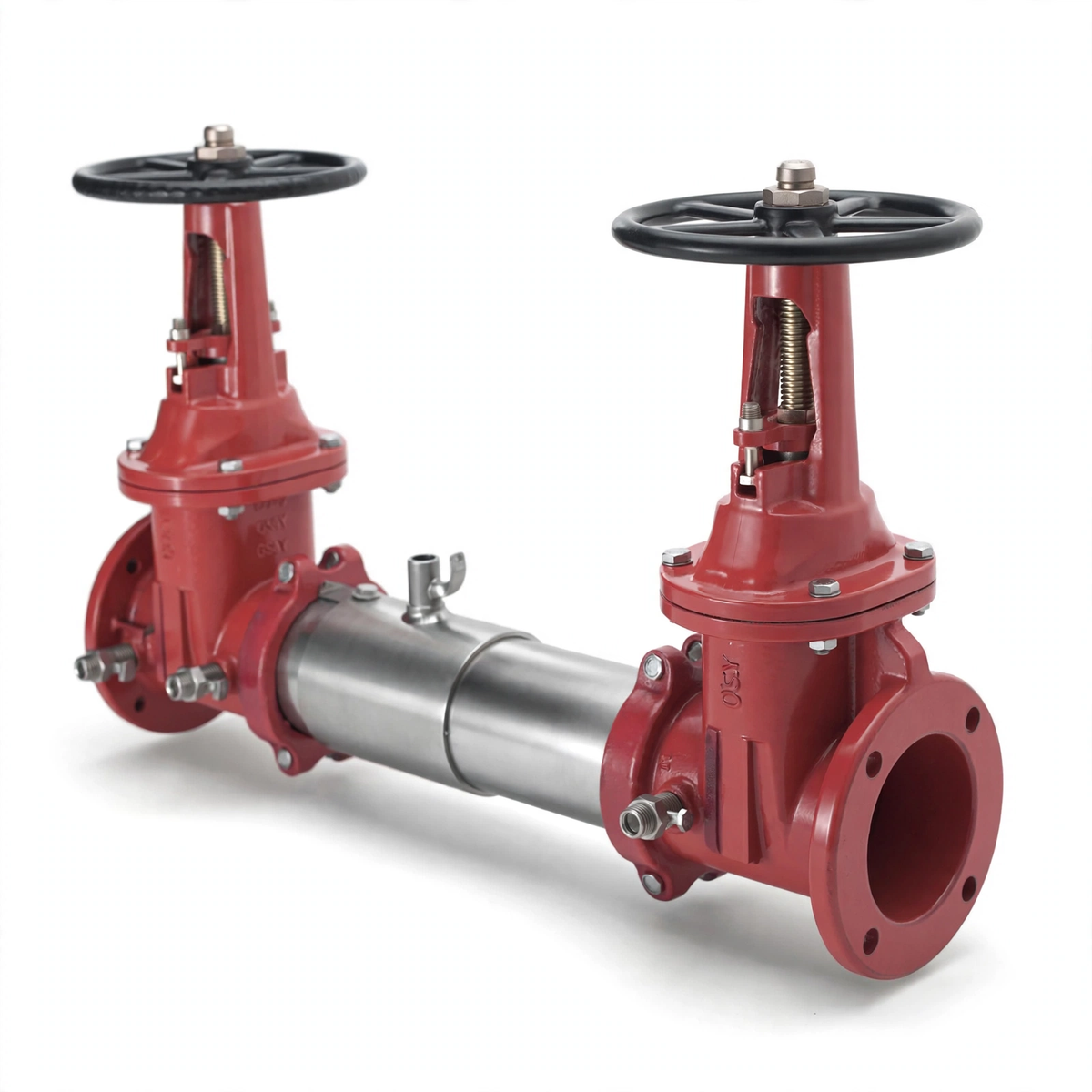

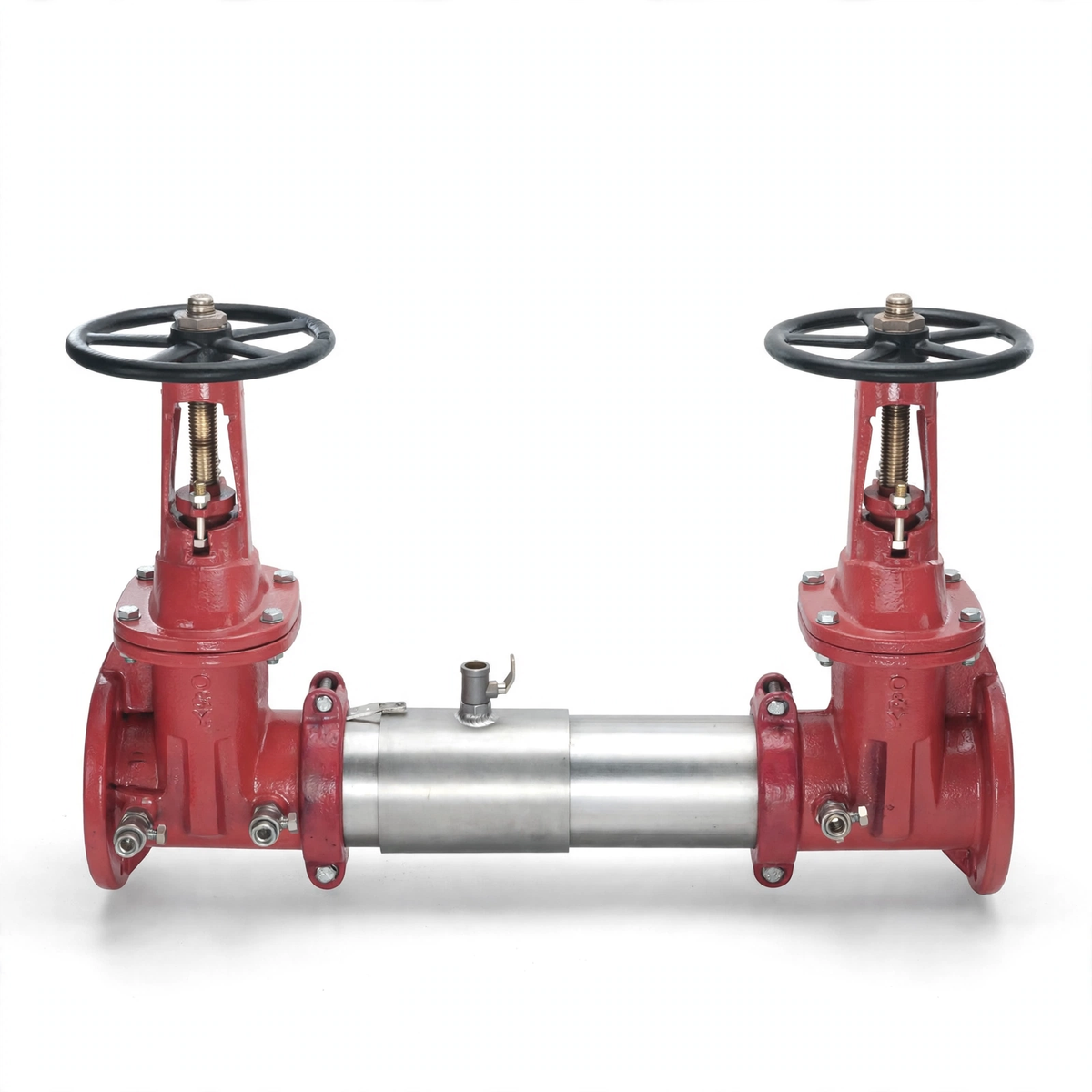

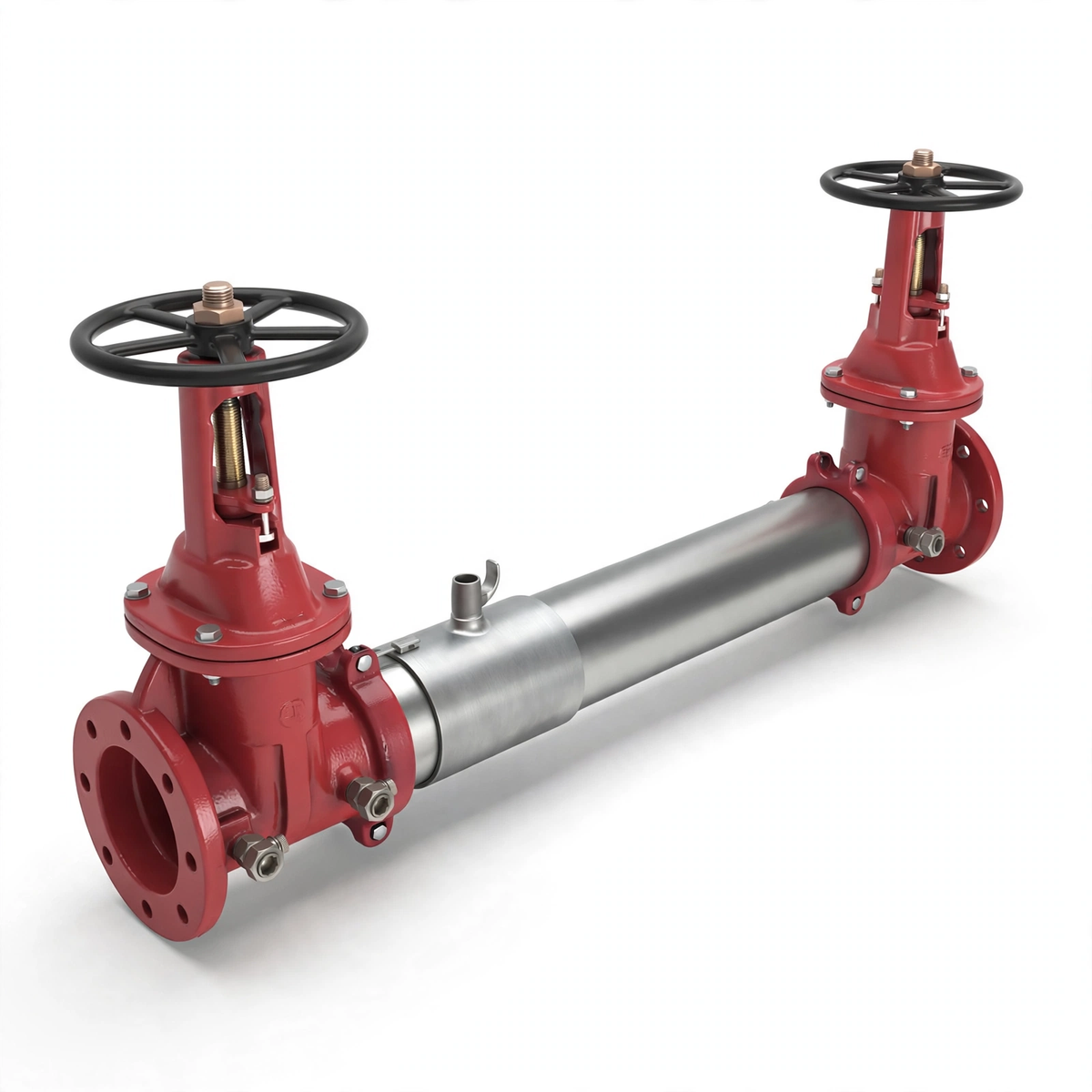

2-1/2" Double Check Assembly With OSY Valve For Fire Protection
R 50,554.00
Sale price
R 50,554.00
Regular price
R 55,613.00
Shipping calculated at checkout
The 2-1/2" Double Check Assembly with OSY Valve is engineered for commercial and industrial fire sprinkler systems and municipal fire mains to protect potable water from backflow contamination. This unit installs inline to provide a dependable physical barrier against cross-connection risks in demanding mechanical environments.
Designed to satisfy strict life safety mandates, this assembly meets NFPA 13 and NFPA 25 requirements for fire sprinkler system installation and inspection. The integrated OS&Y (Outside Screw and Yoke) valve provides manual isolation capabilities and a clear visual position indicator so facility managers can instantly verify valve status and maintain regulatory code compliance during routine testing.
Key Features & Construction
- Stainless Steel Assembly Body: The C200 assembly housing is stainless steel.
- Stainless Steel Internals: 300-series springs and fasteners endure fluctuating water conditions without degrading.
- Reversible EPDM Check Valves: Elastomer discs ensure reliable sealing and simplify ongoing maintenance routines.
- OS&Y Shutoff Valve: Provides manual isolation and clear visual position indication during routine testing.
- Flexible Installation: Installs in either horizontal or vertical flow orientations using standard NRS or flanged connections.
Technical Specifications & Compliance Table
| Specification | Detail |
|---|---|
| Manufacturer / Brand | Ames Backflows |
| Model / Series Number / SIN | 2-1/2" Double Check Assembly with OSY Valve |
| Connection / Thread Size & Type | 2-1/2" (Standard NRS or Flanged Connections) |
| Pressure Rating (WWP) | 175 PSI |
| K-Factor | N/A |
| Temperature Rating / Response Type | 33°F to 140°F |
| Material / Body Construction | Stainless Steel Assembly Body, 300-Series Stainless Steel Springs & Fasteners, EPDM Check Valves, Brass Stem |
| Agency Listings & Approvals | UL Listed to UL 1469, FM Approved, ASSE 1015 Compliant |
| Applicable NFPA Standards | NFPA 13, NFPA 25 |
Contractors must verify local Authority Having Jurisdiction (AHJ) guidelines and review manufacturer cut sheets prior to job site installation. Note that this assembly is sold as Non-Refundable and Non-Cancellable.
Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)
