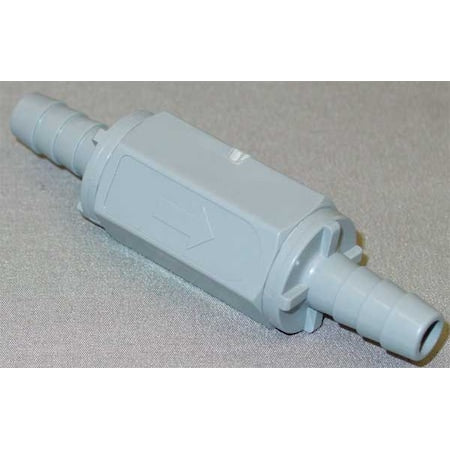

3/8" Barb Gray PVC Ball Cone Spring Check Valve
R 212.00
Sale price
R 212.00
Regular price
Shipping calculated at checkout
ZORO SELECT 426 series ball cone spring check valve is an inline, single-flow check valve with 3/8 in barb x barb connections. It uses a spring-loaded ball mechanism intended for one-way flow control and reverse-flow reduction. This PVC valve is rated for general-purpose chemical service; confirm media compatibility before use. It is sized for use in compact piping or tubing systems.
Key Features:
- Valve type: Ball cone spring check valve with inline ball cone design
- Body material: PVC
- Check mechanism: Ball with stainless steel check mechanism material
- Connection size: 3/8 in x 3/8 in
- Connection type: Barb x Barb
- Cracking pressure: 1 psi
- Pressure rating: 125 psi maximum operating pressure; 125 psi maximum water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal or vertical
- Seal materials: Viton/FKM and PTFE
- Seat material: PVC
- Spring material: Hastelloy
- Standards: NSF 42
- Valve dimensions: 3.53 in overall length, 1 in overall height, 1 in width
- Ship Pack Height: 2
- Ship Pack Length: 6
- Ship Pack Width: 3
