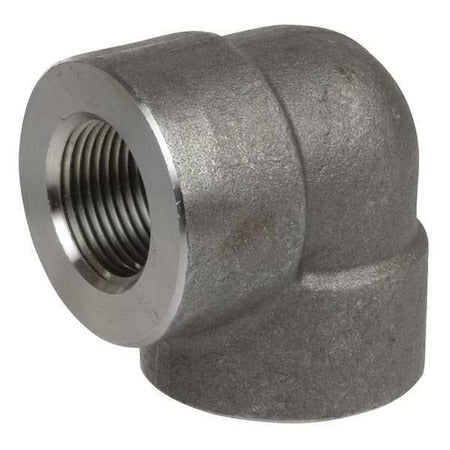

304 Stainless Steel 1 in FNPT 90 Degree Elbow, Class 3000
R 586.00
Sale price
R 586.00
Regular price
Skip to product information
Request for Tax Exemption
Request a Quote
304 Stainless Steel 1 in FNPT 90 Degree Elbow, Class 3000
R 586.00
Sale price
R 586.00
Regular price
Shipping calculated at checkout
The ZORO SELECT - 2UA59 is a 90 Degree Elbow stainless steel pipe fitting constructed from 304 stainless steel. It connects two 1-inch pipes at a right angle (90°) with female NPT threaded connections on both ends, sized 11 1/2 threads per inch. Constructed from 304 stainless steel and rated for the maximum pressures specified (3000 psi at 100°F; 2500 psi steam at 350°F) per ASME B16.11. The fitting meets industry standards including ASTM A182 for material, ANSI/ASME B1.20.1 for threads, and ASME B16.11 for pressure ratings. Key Features:
- - Material: 304 Stainless Steel
- - Configuration: 90 Degree Elbow with female NPT threaded ends on both sides
- - Nominal Pipe Size: 1 inch for both connection ends
- - Thread Size: 11 1/2 threads per inch, female NPT
- - Pressure Rating: Class 3000 (3000 psi @ 100°F maximum pressure)
- - Steam Pressure Rating: 2500 psi @ 350°F
- - Standards: ASTM A182 (material), ANSI/ASME B1.20.1 (threads), ASME B16.11 (pressure class)
- - No pre-applied thread sealant or included seals
- Ship Pack Height: 2.83
- Ship Pack Length: 2.83
- Ship Pack Width: 2.2
