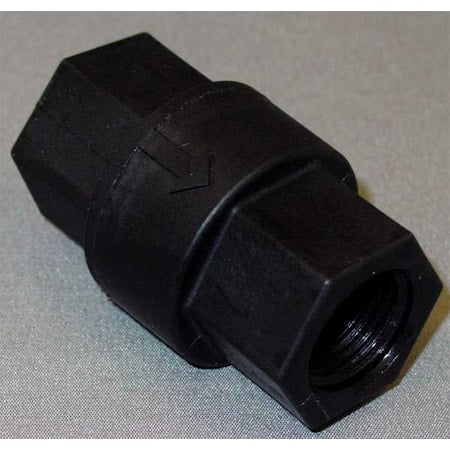

ZORO SELECT series 693 ball cone spring check valve is an inline, single-flow check valve for general-purpose air and fluid service. It uses a spring-loaded poppet mechanism to allow flow in one direction and closes at a 0.33 psi cracking pressure for reverse-flow control applications. The valve features a glass-filled polypropylene body and seat with 3/8 in FNPT female connections on both ends.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size and type: 3/8 in FNPT x FNPT, female on both sides
- Body material: Glass-filled polypropylene
- Seat material: Glass-filled polypropylene
- Check mechanism: Spring-loaded poppet
- Flow design: Single flow; full flow
- Media: Air, fluids
- Cracking pressure: 0.33 psi
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Seal material: FKM/Viton; seal: TFE, carbon filled
- Spring material: Stainless steel
- Mounting orientation: Horizontal or vertical
- Overall length: 2 in
- Overall height: 1 15/64 in
- Hex size: 15/16 in
- Ship Pack Height: 1.2
- Ship Pack Length: 5.5
- Ship Pack Width: 5.5
