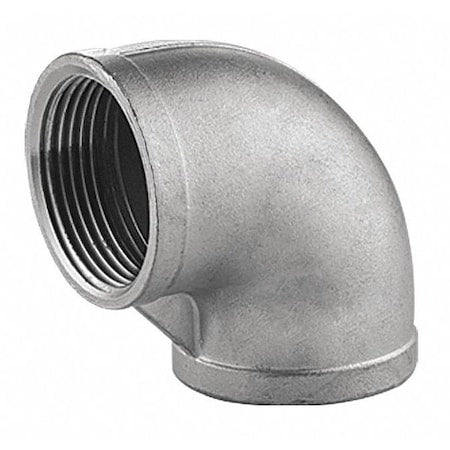

1-1/4" FNPT 304 SS 90 Degree Elbow

The ZORO SELECT - 409E111N114 is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes and create a right-angle (90°) change in flow direction. Constructed from 304 stainless steel, it is suitable for use in piping systems handling air, natural gas, non-potable water, oil, potable water, and steam within the Class 150 pressure rating and the specified maximum pressures (up to 300 psi for non-steam services; up to 150 psi for steam). Rated for Class 150 pressure rating; maximum operating pressure: 300 psi; maximum steam pressure: 150 psi. It features female National Pipe Thread (NPT) connections on both ends, each sized at 1 1/4 in nominal pipe size and matching 11 threads per inch. The fitting is not supplied with pre-applied thread sealant or included seals. Key Features:

• - Material: 304 Stainless Steel conforming to ASTM-A-351 standards.
• - Pressure Class: Class 150 with a maximum operating pressure rating of 300 psi.
• - Connections: Female NPT threaded ends on both sides, each 1 1/4 in nominal size and 11 TPI, compliant with ANSI B1.20.1 threading standards.
• - Applications include air, natural gas, non-potable water, oil, potable water, and steam systems.
• - Color: Silver.
• - Includes no pre-applied thread sealant or additional sealing components.
• - Meets MSS-SP-114 Class 150 pressure rating specifications.

• Ship Pack Height: 8
• Ship Pack Length: 11
• Ship Pack Width: 8
