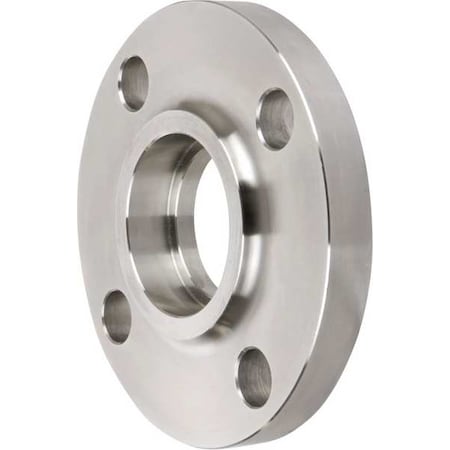

3" Welded SS Socket Weld Flange
R 1,750.00
Sale price
R 1,750.00
Regular price
Skip to product information
Request for Tax Exemption
Request a Quote
3" Welded SS Socket Weld Flange
R 1,750.00
Sale price
R 1,750.00
Regular price
Shipping calculated at checkout
The ZORO SELECT - 4381002470 is a 316 stainless steel socket weld flange designed for use in piping systems requiring welded connections. The flange features a raised face and a recessed socket to accept the pipe end, which is then secured by a fillet weld to create a weld joint meeting standard welding specifications. This flange is rated to Class 150 standards with a maximum operating pressure of 150 psi and temperature range: -60 to 450 F. The flange has a nominal pipe size of 3 inches and an outside diameter of 7 1/2 inches, featuring four bolt holes for bolts to mating components.
Key Features:
- - Material: 316 Stainless Steel
- - Connection Type: Welded socket weld flange with a raised face surface.
- - Pressure Rating: Class 150, maximum operating pressure 150 psi.
- - Nominal Pipe Size: 3 inches.
- - Flange Outside Diameter: 7 1/2 inches.
- - Number of Bolt Holes: 4.
- - Temperature Range: -60 to 450 F.
- - Complies with ANSI B16.5 and ASTM A182 standards.
- Ship Pack Height: 1.9
- Ship Pack Length: 7.5
- Ship Pack Width: 7.5
