1/2" FNPT SS Threaded Flange
R 652.00
Sale price
R 652.00
Regular price
Shipping calculated at checkout

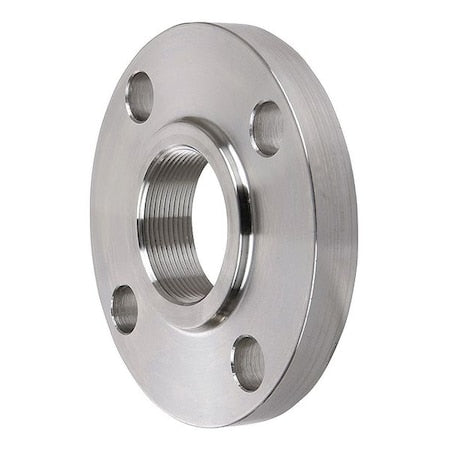

The ZORO SELECT - 4381006000 is a forged threaded flange made of 316/316L stainless steel, intended for use with stainless steel piping systems; forged from 316/316L stainless steel. It features internal female NPT threads to connect with male-threaded pipes, bolted flange joints; welding not required for installation. 316/316L stainless steel provides corrosion resistance in typical piping environments. It is rated for Class 300 service; maximum operating pressure: 720 psi; accommodating nominal pipe sizes of 1/2 inch.
Key Features:
- - Material: Forged 316/316L stainless steel
- - Connection type: FNPT (Female National Pipe Thread)
- - maximum operating pressure: 720 psi; Class 300 service rating
- - Flange dimensions: Outside diameter of 3 3/4 inches, thickness of 5/8 inch.
- - Bolt circle diameter: 2 5/8 inches with 4 bolt holes of 5/8 inch diameter.
- - Raised face connection surface for gasket sealing.
- - Overall length (thickness including flange): 7/8 inch.
- - Conforms to ASTM-SA182, ANSI B16.5, and ASME B1.20.1 standards.
- Ship Pack Height: 0.5
- Ship Pack Length: 3.8
- Ship Pack Width: 3.8
