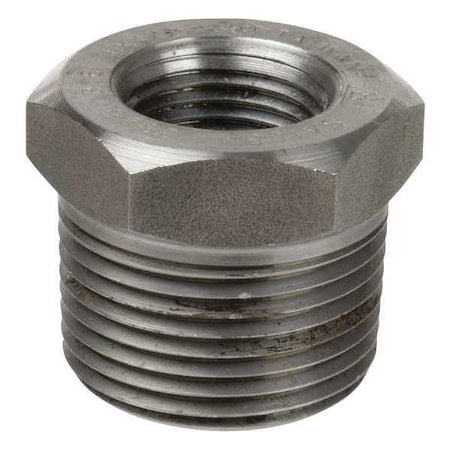

Hex Reducing Bushing, 2-1/2 in x 1-1/2 in, Male NPT x Female NPT, 304 Stainless Steel, Class 3000

The ZORO SELECT - 4307000278 is a stainless steel hex reducing bushing designed for threaded pipe assembly, providing an adaptation between different pipe sizes. Made from 304 stainless steel as per material specifications, it offers corrosion and temperature resistance suitable for industrial and commercial systems. The fitting features a female connection (Side A) of 2-1/2 inches NPT and a male connection (Side B) of 1-1/2 inches NPT, with a Class 3000 pressure rating. Its overall length is 1-7/16 inches, and the hex size for wrenching is 3 inches, facilitating secure tightening and leak-resistant joints.

Key Features:

• - Material Grade: 304 Stainless Steel, made from 304 stainless steel as per material specifications
• - Connection Type: MPT x FNPT, indicating threaded male and female ends
• - Pressure Rating: Class 3000, supporting high-pressure applications
• - Max Pressure: 2570 psi at 100°F, ensuring rated operational safety
• - Max Steam Pressure: 1965 psi at 350°F, meets standard specifications for application in steam systems
• - Outside Diameter: 3 inches, defining the connection size
• - Hex Size: 3 inches, allowing for wrench tightening
• - Standards: Threads conform to ASME B1.20.1; materials conform to ASTM A182
• - Includes no pre-applied thread sealant or seal; sealing required per application

• Ship Pack Height: 2.3
• Ship Pack Length: 4.2
• Ship Pack Width: 3.9
