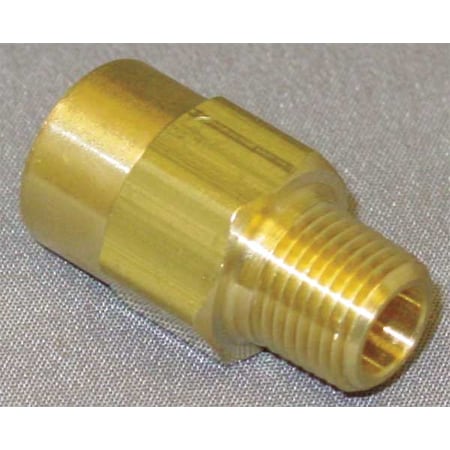

1/2" MNPT x FNPT Brass Piston Spring Check Valve
R 354.00
Sale price
R 354.00
Regular price
Shipping calculated at checkout
ZORO SELECT Series 810 piston spring check valve with an inline, single-flow design for general-purpose air and fluid service. It uses a spring-loaded brass piston to allow flow in one direction and close when flow slows or reverses for use in piping systems requiring one-way flow control. The brass body has 1/2 in. MNPT x FNPT threaded connections and can be mounted horizontally or vertically.
Key Features:
- Inline piston spring check valve for one-way flow control
- 1/2 in. nominal valve size with 1/2 in. MNPT x FNPT NPT connections
- Brass body, brass check mechanism, and brass seat
- FKM/Viton and PTFE seal materials
- Stainless steel spring
- 1 psi cracking pressure
- Full-flow design
- For air and fluid service
- 500 psi maximum pressure
- Operating temperature range: -20 degrees F to 180 degrees F
- Overall length: 1.88 in.; overall height: 1 in.; hex size: 1 in.
- Horizontal or vertical mounting orientation
- Ship Pack Height: 1
- Ship Pack Length: 5.5
- Ship Pack Width: 4.4
