Pipe Flange, Schedule 40, 304/304L SS
Pipe Flange, Schedule 40, 304/304L SS
Shipping calculated at checkout

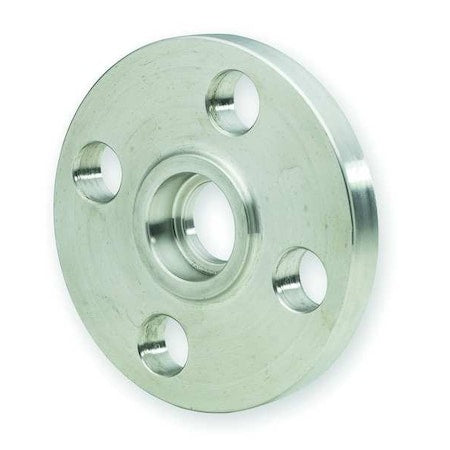

The ZORO SELECT - 4381000670 is a stainless steel socket weld flange designed for small-diameter, high-pressure piping systems. It features a recessed socket to accept pipe ends, which are then secured with a fillet weld to create a pressure-tight connection. The flange is constructed from forged 304 stainless steel, providing corrosion resistance and strength. It has a bolt circle diameter of 6 inches, bolt hole diameter of 3/4 inches, flange outside diameter of 7-1/2 inches, and a thickness of 15/16 inches. This flange is rated for operation at pressures up to 275 psi, with a steam rating of 150 psi, and is intended for use within rated pressure specifications.
Key Features:
- - Material: Forged 304 Stainless Steel for durable corrosion resistance.
- - Connection Type: Socket Weld flange accepting pipe ends for pressure-tight sealing.
- - Pressure Rating: Class 150, supporting maximum operating pressure of 275 psi.
- - Dimensions: 3-inch nominal pipe size, 7-1/2 inch outside diameter, 15/16 inch flange thickness.
- - Bolt Details: 4 bolt holes with a 6-inch bolt circle diameter and 3/4 inch bolt hole diameter.
- - Compatibility: Standardized to ASTM-SA182 and ANSI B16.5 standards.
- Ship Pack Height: 1.3
- Ship Pack Length: 7.5
- Ship Pack Width: 7.5
