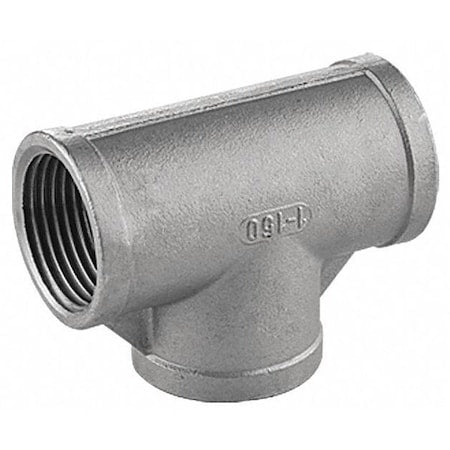

Tee,SS,Thrd1-1/2",Thrd1-1/2",Thrd1-1/2"

The ZORO SELECT - 40TE111N112 is a T-shaped stainless steel pipe fitting designed to join three pipe runs with a 90° branch, enabling fluid or gas flow to be split or combined. Constructed from 304 stainless steel, this tee is suitable for conveying media compatibility includes air, natural gas, non-potable water, oil, potable water, and steam as listed in the specifications; operation is within Class 150 pressure rating (maximum operating pressure 300 psi; maximum steam pressure 150 psi). It features threaded FNPT (Female National Pipe Thread) connections on all three ends, each with a nominal pipe size of 1 1/2 inches, compatible with Schedule 40 pipe. The fitting is rated for Class 150 pressure, supporting a maximum operating pressure of 300 psi and maximum steam pressure of 150 psi, conforming to ASTM-A-351 material specifications, ANSI/ASME B1.20.1 threading standards, and meets MSS-SP-114 Class 150 pressure ratings.

Key Features:

• - Material: 304 Stainless Steel construction
• - Shape: Tee with three female FNPT threaded connections sized 1 1/2 in each
• - Pressure rating: Class 150 with maximum operating pressure of 300 psi
• - Compatible with Schedule 40 pipe
• - Media compatibility includes air, natural gas, non-potable water, oil, potable water, and steam as listed in the specifications; operation is within Class 150 pressure rating (maximum operating pressure 300 psi; maximum steam pressure 150 psi)
• - Threading per ANSI/ASME B1.20.1 standard, with 11 threads per inch
• - Maximum steam pressure: 150 psi
• - Lead content compliance: Meets applicable lead content requirements for potable water systems (per MSS-SP-114)
• - Overall length: 77.6 mm
• - Color: Silver
• - Does not include pre-applied thread sealant or seals

• Ship Pack Height: 2.5
• Ship Pack Length: 3.9
• Ship Pack Width: 3.1
