AODDPump,1/2inNPT,PTFE,45gpm
R 56,325.00
Sale price
R 56,325.00
Regular price
Skip to product information

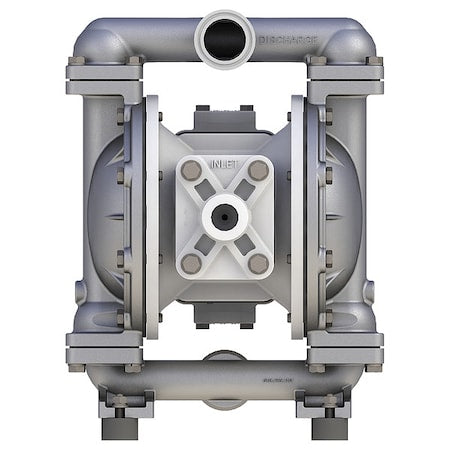

This Sandpiper air operated double diaphragm pump has an aluminum housing with a 316 stainless steel wetted section, using bolted assembly. Diaphragm material is PTFE, with PTFE ball valves and stainless steel check seats and mounting hardware. Air intake connection is 1/2 in NPT, with a maximum operating pressure of 125 psi. Media intake and discharge connections are both 1-1/2 in Tri-Clamp (intake located bottom, discharge located top). Maximum flow rate is 45 gpm, with a maximum feet of head of 289 ft. The pump is self-priming, with a maximum solid handling size of 0.25 in diameter and maximum media temperature of 190°F. The unit is certified to CE, EC 1935, ISO, and FDA compliance standards. It carries a 5-year manufacturer's warranty and is manufactured in the United States. Specifications Housing Material: Aluminum | Wetted Housing: 316 Stainless Steel Pump Assembly Type: Bolt | Manifold Connection: Single Port Diaphragm Material: PTFE | Valve Material: PTFE | Valve Type: Ball | Check Seat Material: Stainless Steel Mounting Hardware Material: Stainless Steel Air Intake: 1/2 in NPT | Max. Operating Pressure: 125 psi Media Intake: 1-1/2 in Tri-Clamp (bottom) | Media Discharge: 1-1/2 in Tri-Clamp (top) Maximum Flow Rate: 45 gpm | Feet of Head (Max): 289 ft Priming: Self-Priming | Max. Solid Size: 0.25 in diameter Max. Media Temperature: 190°F Standards: CE Certified, EC 1935, ISO, FDA Compliant Manufacturer's Warranty: 5 yr Overall Dimensions: 12.5 in W x 10.3 in L x 14 in H Country of Origin: United States
Request for Tax Exemption
Request a Quote
AODDPump,1/2inNPT,PTFE,45gpm
R 56,325.00
Sale price
R 56,325.00
Regular price
Shipping calculated at checkout
- Ship Pack Height: 14.9
- Ship Pack Length: 12.9
- Ship Pack Width: 12.1
