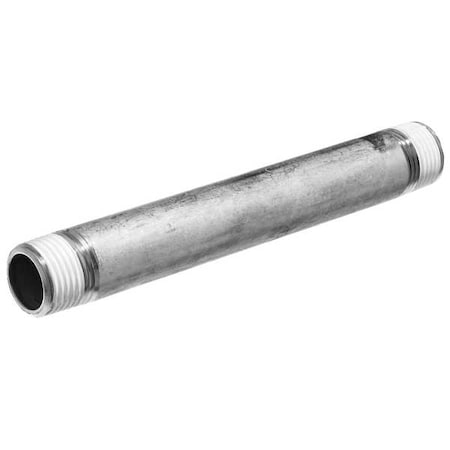

Pipe, Schedule 40, 1 in Nominal, 304 Stainless Steel, Threaded Both Ends, 4 ft Length

The ZORO SELECT - ZUSA-PF-1652 is a stainless steel pipe used for conveying fluids such as air, natural gas, non-potable water, propane, and steam. Rated for use with Schedule 40 piping systems, it features a nominal diameter of 1 inch and an inside diameter of 1 3/64 inches. Its welded construction and specific thread and connection types enable secure and reliable piping connections across various industrial and commercial applications, rated for operation at pressures up to 150 psi at 72°F and 150 psi for steam at 360°F. Overall length is 4 feet, suitable for standard piping configurations.

Key Features:

• - Application compatibility with air, natural gas, non-potable water, propane, and steam.
• - Made from 304 stainless steel material for durability and corrosion resistance.
• - Rated for maximum pressure of 150 psi at 72°F and for steam at 360°F.
• - Constructed with welded joints and threaded connections as specified.
• - Pipe has a Nominal Pipe Size of 1 inch and an outside diameter of 1 5/16 inches.
• - End connections include threaded male for Side A with NPT threading, and threaded male for Side B with NPT threading.
• - Connection types on both sides are threaded, with various standards such as ANSI/ASME B1.20.1, ASTM A312, and ASTM A733.
• - Wall thickness of 0.133 inches, providing structural integrity.
• - Overall length is 4 feet, suitable for standard piping configurations.

• Ship Pack Height: 1.2
• Ship Pack Length: 48
• Ship Pack Width: 1.2
