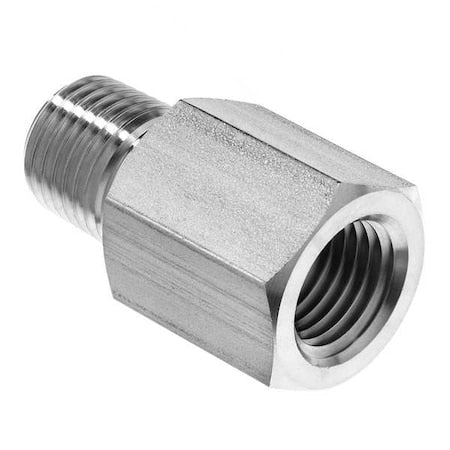

StainlessSteel,Straight,1/4"BSPPx1/4"NPT

The ZORO SELECT - ZUSA-PF-8759 is a stainless steel instrumentation pipe fitting designed as an adapter to connect small-diameter tubing with different thread standards and configurations. Constructed from 316 stainless steel, it is intended for use in piping systems carrying air, natural gas, oil, potable water, and steam. The fitting features a female BSPP connection on Side A and a male NPT connection on Side B, each sized at 1/4 inch nominal pipe size. It is compliant with low lead regulations for potable water systems and conforms to the ANSI B31.1 standard.

Key Features:

• - Material grade: 316 stainless steel.
• - Specific fitting shape: Adapter for joining components with different thread types.
• - Side A connection: Female BSPP, 1/4 in nominal pipe size, 19 threads per inch.
• - Side B connection: Male NPT, 1/4 in nominal pipe size, 18 threads per inch.
• - Maximum operating pressure: 5,700 psi.
• - Overall length: 1 1/2 in.
• - Hex size for wrenching: 7/8 in.
• - No pre-applied thread sealant or included seals.
• - Compliant with low lead requirements for potable water.
• - Meets ANSI B31.1 standard.

• Ship Pack Height: 0.1
• Ship Pack Length: 3.1
• Ship Pack Width: 3.1
