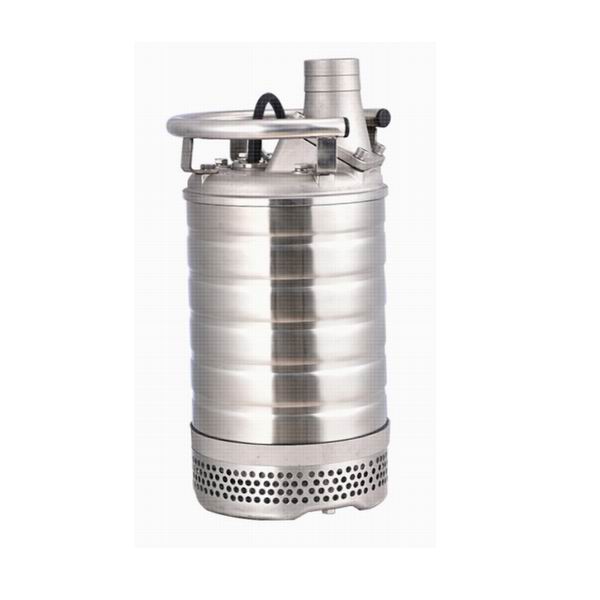

KSS 47.5 480VAC,60HZ,3PH 10 HP 20 meter cable SS304 SUBMERSIBLE DRAINAGE PUMP
KSS series has compact design, high performance and exceptional durability for handing abrasive liquid. widely used in general construction and civil engineering.
The body of motor and pump is made of rigid cast iron or stainless steel for long-lasting durability. Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure. Semi-open impeller made of high chrome alloy match with wear plate (ductile iron) achieves superior durability.
Effective motor cooling due to discharge channel cast as part of the motor housing.
Discharge 50mm(2") to 150mm(6"),motor 0.25kW (0.35HP) to 11 kW (15HP).
Hermetically sealed motor equipped build-in thermal protection.
