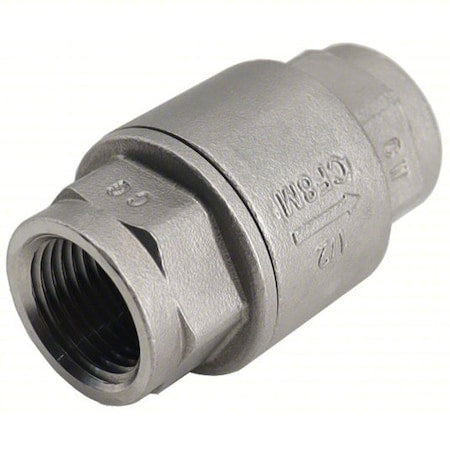

Check Valve, H021N01 Series, Inline Spring Piston, 1/2 in FNPT x FNPT, 316 Stainless Steel
R 286.00
Sale price
R 286.00
Regular price
Skip to product information
Request for Tax Exemption
Request a Quote
Check Valve, H021N01 Series, Inline Spring Piston, 1/2 in FNPT x FNPT, 316 Stainless Steel
R 286.00
Sale price
R 286.00
Regular price
Shipping calculated at checkout
ZORO SELECT 06H021N01012 is an inline spring piston check valve designed for steam and water service. It uses a self-acting piston mechanism to permit flow in one direction and close to reduce reverse flow. The valve has a 316 stainless steel body and internal components, 1/2 in. female NPT connections on both ends, and is intended for vertical mounting.
Key Features:
- Inline spring piston design with one-way flow operation
- 316 stainless steel body, check mechanism, and spring
- FNPT x FNPT connection type with 1/2 in. female NPT connections on both ends
- Cracking pressure: 0.44 psi
- Maximum operating pressure: 200 psi
- Maximum steam pressure: 60 psi WSP
- Operating temperature range: -20 degrees F to 302 degrees F
- Compatible media: steam and water
- Seal material: PTFE
- Seat material: FKM
- Inline body style
- Vertical mounting orientation
- Overall length: 2.24 in.
- Overall height: 2 1/4 in.
- Width: 1 23/64 in.
- Hex size: 1 in.
- Standard: AD2000-WO
- Ship Pack Height: 1.3
- Ship Pack Length: 2.3
- Ship Pack Width: 1.3
