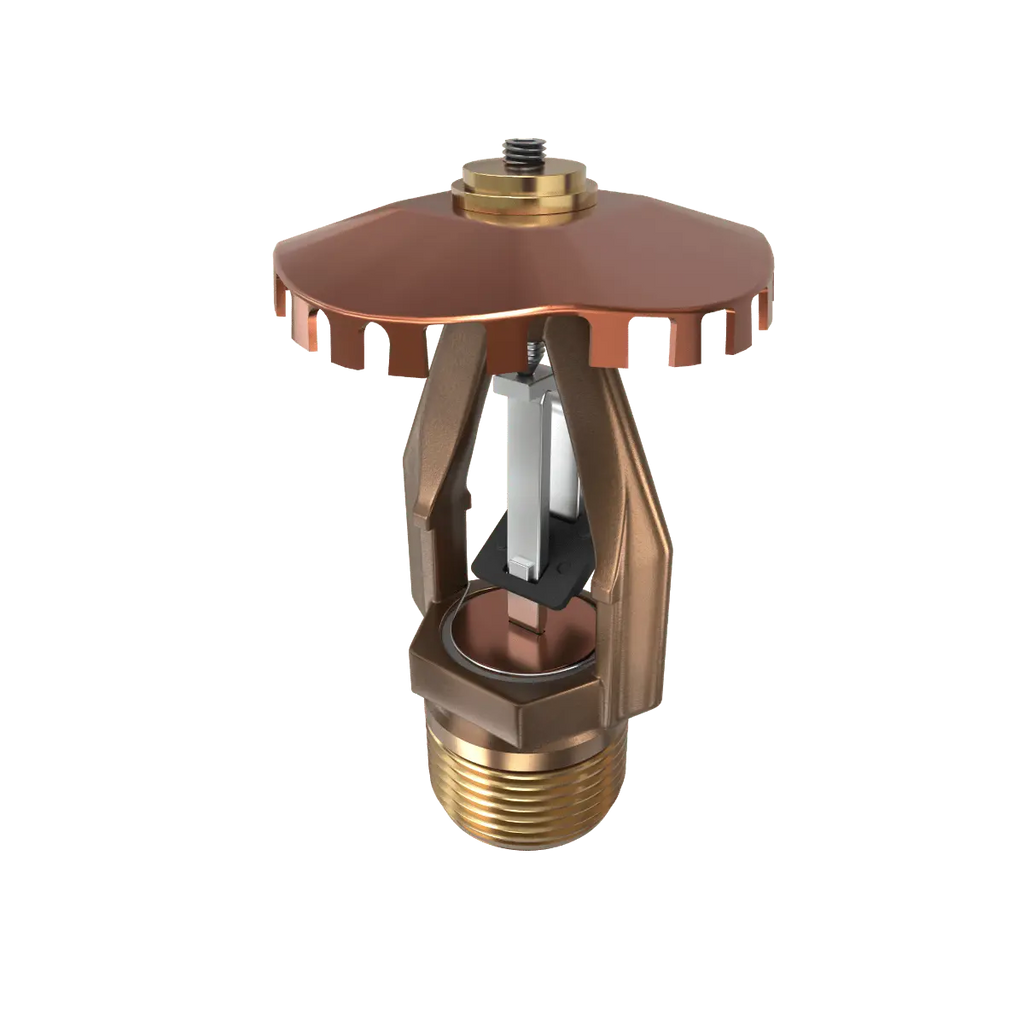

Viking VK595 K25.2 EC Upright Fire Sprinkler: Superior Extended Coverage

The Viking VK595 K25.2 EC Upright Fire Sprinkler is a specialized suppression component engineered for commercial and industrial facilities requiring extensive water distribution. It installs directly onto wet pipe fire suppression systems to provide rapid fire control in high-pile storage areas, rack storage spaces, and large retail environments. Upon thermal exposure, the unit activates via a calibrated solder link mechanism, discharging water efficiently to manage challenging fire loads.

This sprinkler satisfies specific requirements under NFPA 13 for extra hazard and high-pile storage occupancies. It complies with strict code requirements by holding cULus Listings for density/area storage sprinkler applications and FM Approval as a quick-response extended coverage sprinkler.

Key Features & Construction

• Durable Brass Body: Built primarily from robust brass to resist corrosion and deliver a long service life in demanding industrial environments.
• Extended Coverage: Features a nominal K-factor of 25.2 (363) that distributes water across a maximum area of 14 ft x 14 ft (196 sq ft) to reduce total sprinkler counts.
• Precision Activation: Employs a calibrated solder link mechanism for dependable response at temperatures of 165°F (74°C) or 212°F (100°C).
• Installation Flexibility: Engineered to integrate smoothly around structural ceiling elements like trusses and bar joists in complex layouts.
• InstaSeal® Compatibility: Supports InstaSeal® technology with Torque-Assist caps to enhance sealing reliability and expedite job site workflows.

Technical Specifications & Compliance Table

Contractors must verify local Authority Having Jurisdiction (AHJ) requirements, confirm compatibility icon details for Torque-Assist cap selections, and consult manufacturer technical data sheets prior to system layout and installation.

Documentation: Download Manufacturer Technical Data & Cut Sheet (PDF)

Select Viking sprinklers are compatible with revolutionary InstaSeal® technology through the addition of new Torque-Assist caps. Make sure to look for the compatibility icon to ensure the correct sprinklers are being ordered for a job requiring InstaSeal technology.
